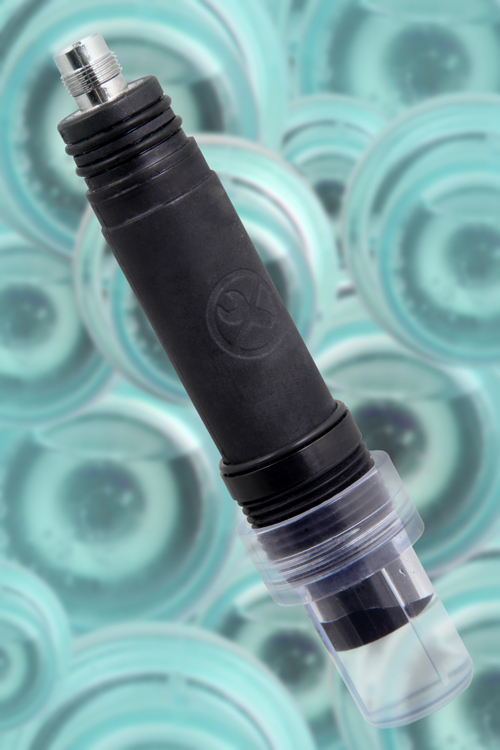

Sensorex has expanded its S8000 series modular electrode platform with the addition of the S8075CD in-line pH electrode and S8075CD-ORP in-line oxidation reduction potential(ORP) electrode. The new electrodes make it possible to integrate the S8000 platform and its modular capabilities into a standard ¾” flow through ‘Tee.’ Typical applications include water/wastewater monitoring, chemical storage, food and beverage production, PCB etching, boiler control, aquaculture, and other process environments where accurate pH and ORP monitoring is essential.
The S8075CD and S8075CD-ORP electrodes were designed for low cost, non-temperature compensated in-line measurement. With integral ¾” NPT threads, the design is compatible with any standard 3/4” flow through ‘Tee.’ Sensorex’s flat surface sensor technology delivers accurate measurement over a range of 0-14 pH or -1999mv to 1999mV for ORP. With a temperature range up to 100°C and pressure rating of 0-100 psig, the S8075CD is suited for both challenging and light duty applications.
With Sensorex’s S8000 series modular pH and ORP platform, users save time and money by configuring a custom system that can grow and change with process needs. Starting with a choice of a pH or ORP (Redox) electrode, users continue customizing with the choice of mounting hardware for in-line or submersion applications. The mounting hardware selection allows for optional automatic temperature compensation (ATC) as well as a stainless steel pin to address ground loop interrupt. The platform includes a variety of electronics options including unity gain pre-amplifiers and blind 4 – 20mA transmitters. If monitoring needs change, users simply update the applicable module without replacing the whole system and only need to stock one sensor for a range of installation considerations.
