Database-Driven Tool Management Software Simplifies Control of Multi CNC Machine Tool Environment

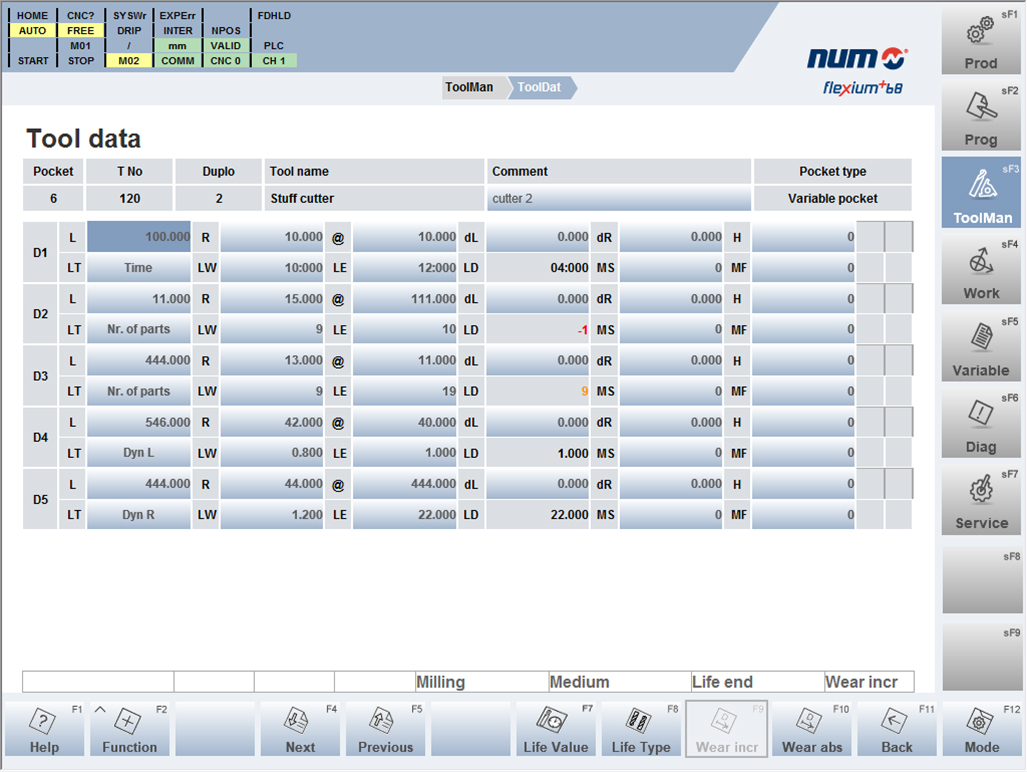

The platform is suitable for complex high-end milling applications, as well as HSM applications in the mold & die market. It provides a comprehensive and constantly accessible database that can either be installed on a server platform for use with multiple CNC machine tools in a large production plant, or used standalone on a single CNC machine tool. The tool management software includes PLC libraries as well as dedicated CNC functions and HMI pages. It can handle many tools of different types — including turning, milling and boring — and standard, medium or large sizes. Duplo tools with identical cutting characteristics are also supported, as are different types of tool magazines such as disk, chain or rack. New tool characteristics are managed at maximum speed and maximum feed rate, and the tool life can be monitored over time, by wear amount or by the number of operations. Pre-emptive warning messages are generated automatically, whenever specified limits are approached. The software provides a comprehensive set of extensions for tool characteristics. In addition to standard items such as the name, type and number of cuts — as many as 18 of which can be specified — extensions are also provided to handle numerous other factors, including magazine size, life management, technological characteristics such as maximum speed and speed rate, and status/warning indicators.

>>For more information on this product, click here
NUM Corp.
www.num.com
630.505.7722
