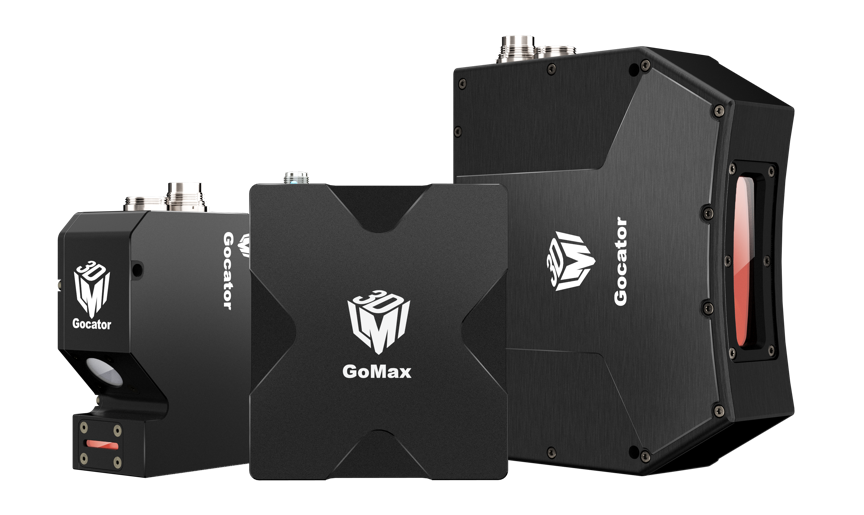

New from LMI Technologies are a series of 10 kHz smart 3D laser profilers, a 6 µm smart snapshot sensor, and a smart vision accelerator.
The Gocator 2500 Series Smart 3D Laser Line Profilers are designed for high-performance small parts inspection, and generate precision 3D scans down to 8 µm X resolution. With a custom high-speed imager; advanced optical design; dedicated FPGA processing, and built-in measurement tools for 3D alignment, part segmentation, and 3D feature extraction; the sensors handle the complete processing pipeline––from raw image data to 3D result — in an all-in-one device that operates at inspection rates up to 10 kHz. the Gocator 3504 Smart 3D Snapshot Sensor has an xy resolution of 6 µm along with ±0.5 µm measurement repeatability. The unit has an industrial stereo camera design and point-and-shoot technology inside a ruggedized industrial package that allows for highly accurate inspection without a motion stage. The sensor is pre-calibrated and ready to measure out of the box using just a web browser. The GoMax Smart Vision Accelerator allows users to accelerate any Gocator 3D smart sensor in order to meet inline production speed, without the need for an industrial PC. This plug-and-play approach connects directly to any Gocator model and speeds up the sensor by taking over a portion of the data processing (including point cloud generation, 3D measurement, and PLC/robot communication).
>>For more information on this product, click here
LMI Technologies
https://lmi3d.com
604.636.1011
