High-Speed Streaming Cameras from Vision Research for Machine Vision Applications

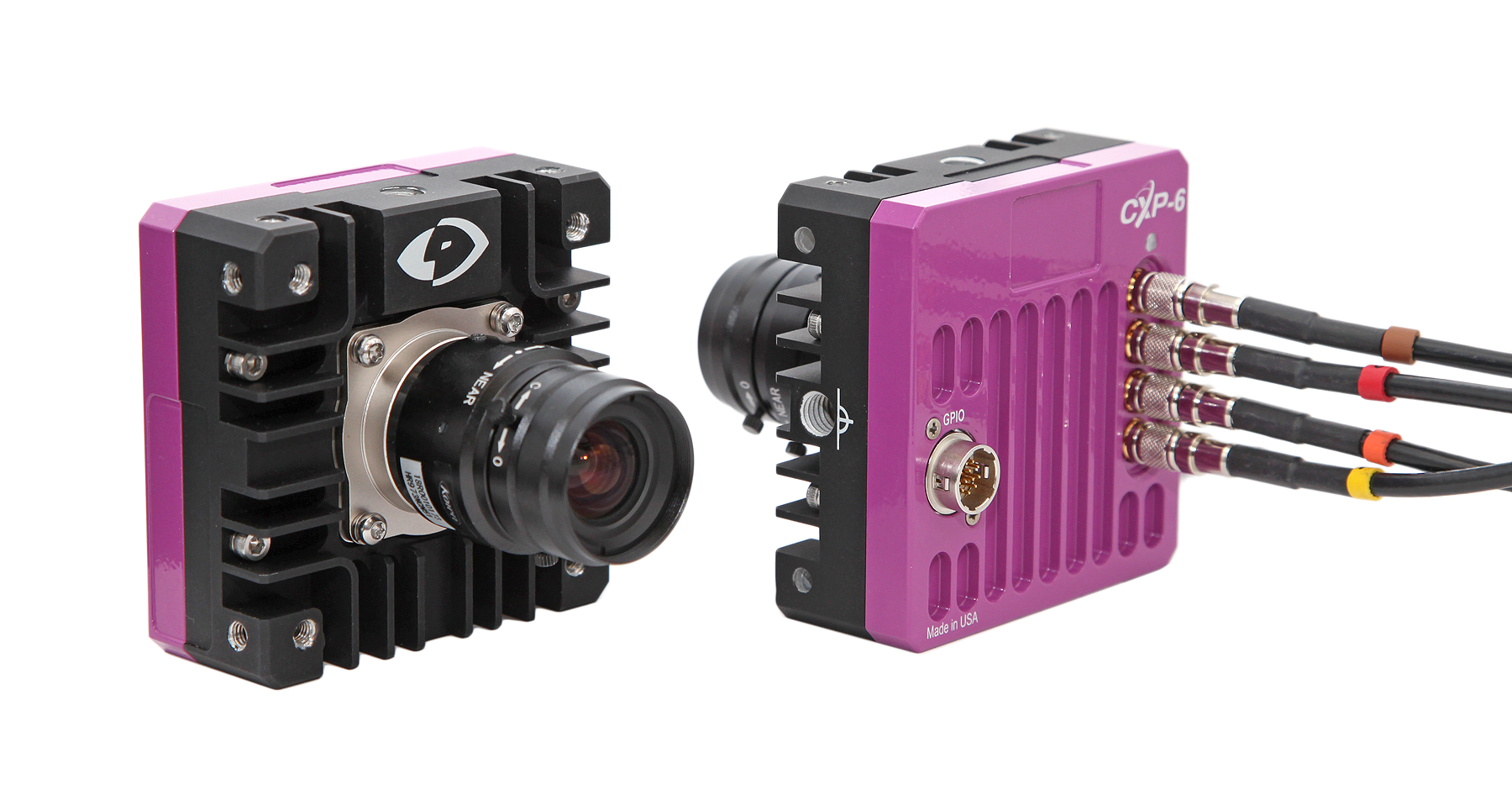

The S210 reaches 1,730 frames per second (fps) at full 1.3 MP resolution, while the S200 achieves 7,000 fps at full 0.3 MP VGA resolution. Both cameras provide the frame rates and throughput needed for demanding machine vision applications across multiple industries. Both use up to four CoaXPress (CXP6) channels to reach 2 GP/s throughput. Both are GenICam-compliant and stream directly into PCI Express frame grabbers. The cameras also feature a general-purpose input/output (GPIO) for fast and flexible signaling and synchronization. These include signals beneficial in standard high-speed applications, such as Time Code In/Out, along with a host of other signals commonly found in streaming applications, such as trigger, strobe and event marking.
>>For more information on this product, click here
Vision Research
https://www.phantomhighspeed.com/
800.737.6588
