B&R Industrial Automation: Motor-Integrated Servo Drives with IP65 Protection
Nov. 29, 2012

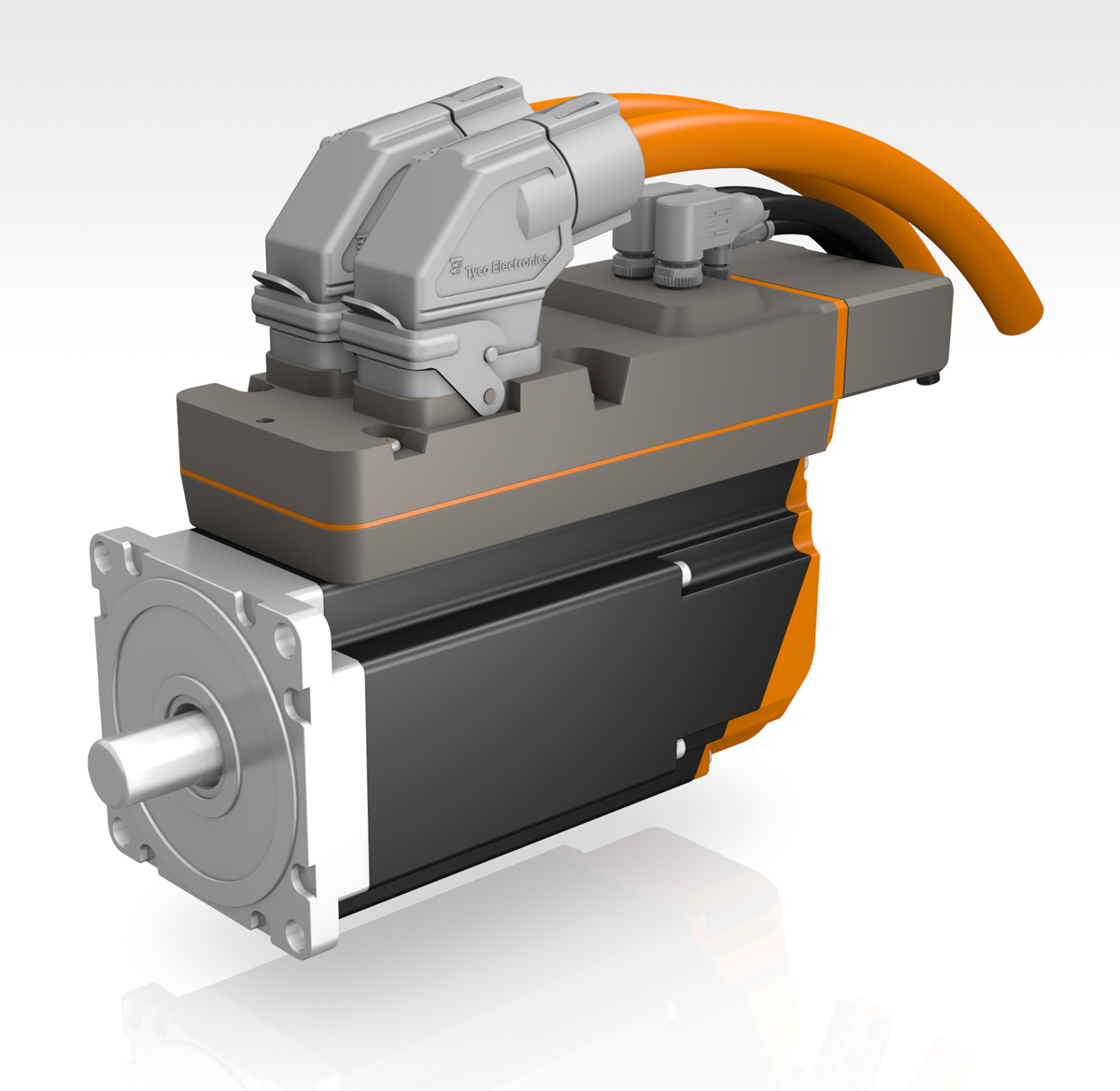

The ACOPOSmulti65m unites all of the important components such as the motor, positioning sensor (encoder), precision gearbox and servo drive into a compact unit.
Thanks to the simple electrical connection, the unit supports the implementation of modular machine concepts, thus making it possible to efficiently design optimized manufacturing strategies, including decentralized motion control. With three different sizes, the servo actuators cover the spectrum, with a torque range of 1.8 to 10.5 Nm and a power range of 500 W to 2 kW. For applications that demand more power, an optional fan assembly can be retrofitted for a performance boost of up to 100%. The unit is fully compatible with the entire ACOPOS drive series, allowing use of all of the tools and features available in Automation Studio as well as applications created therein. With regard to topology, the new servo actuator can be employed in either a line or tree structure. Networking takes place using POWERLINK.
