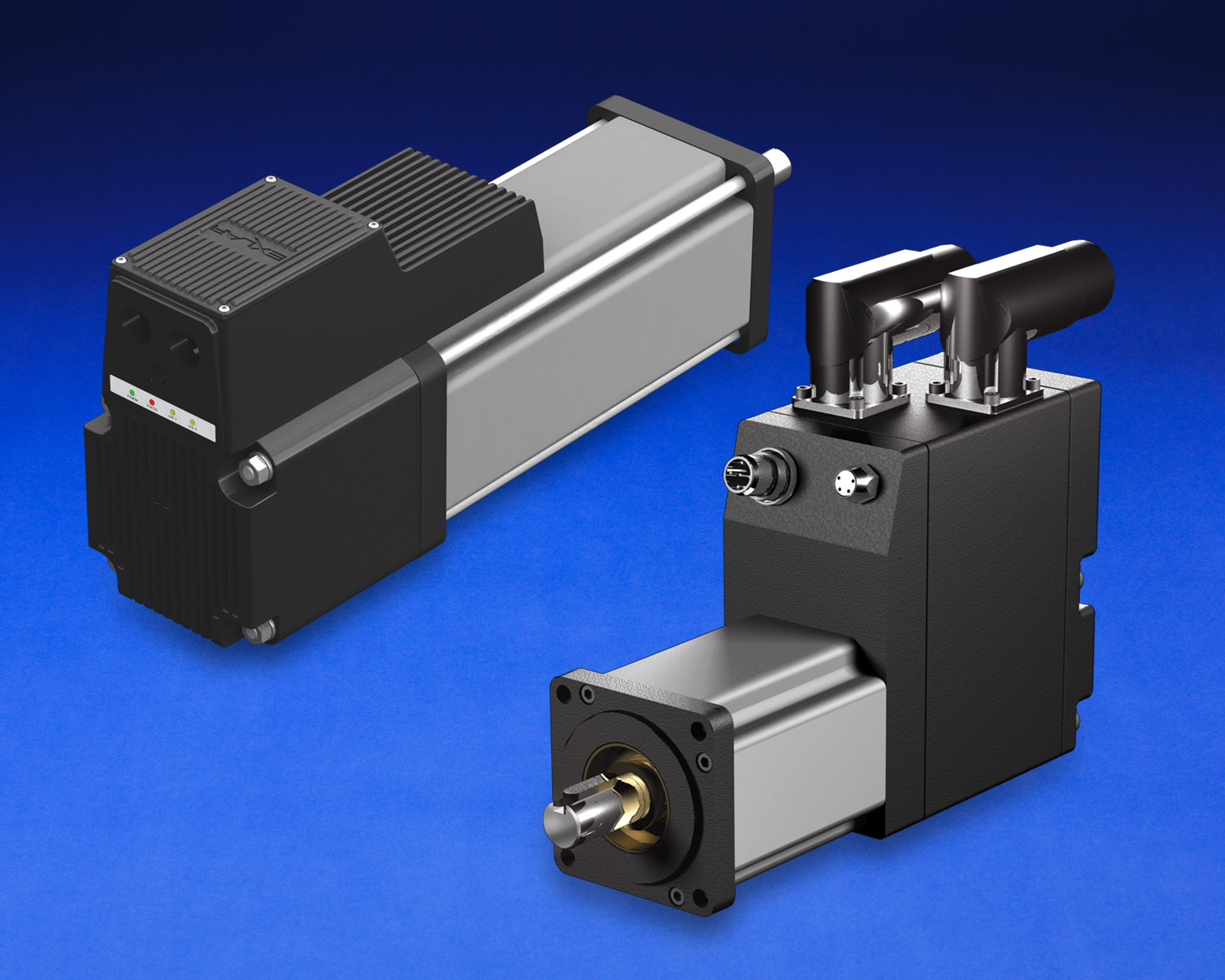

This communication link to a PLC makes it possible to send and receive the data needed to operate the actuator with a machine automation control system. Features include transfer of up to 100 input and 100 output words. PROFINET register mapping and configuration setup through the company's Tritex Expert software interface allow access to any parameter; connection through industrial standard M12 Ethernet connector and connectivity to Siemens PLC models that support PROFINET IO. Actuators are offered in 100-240 VAC or 12-48 VDC allowing direct connection to factory power sources. Expert software features include 16 programmable indexes, linked moves and communications via the actuator's Modbus port. This port via RS-485 protocol allows complete control, programming and monitoring of all aspects of the actuator as it performs an application. I/O capability includes eight digital inputs, four digital outputs plus one analog input and output.
>>For more information on this product, click here
Exlar Corporation
www.exlar.com
855.620.6200
