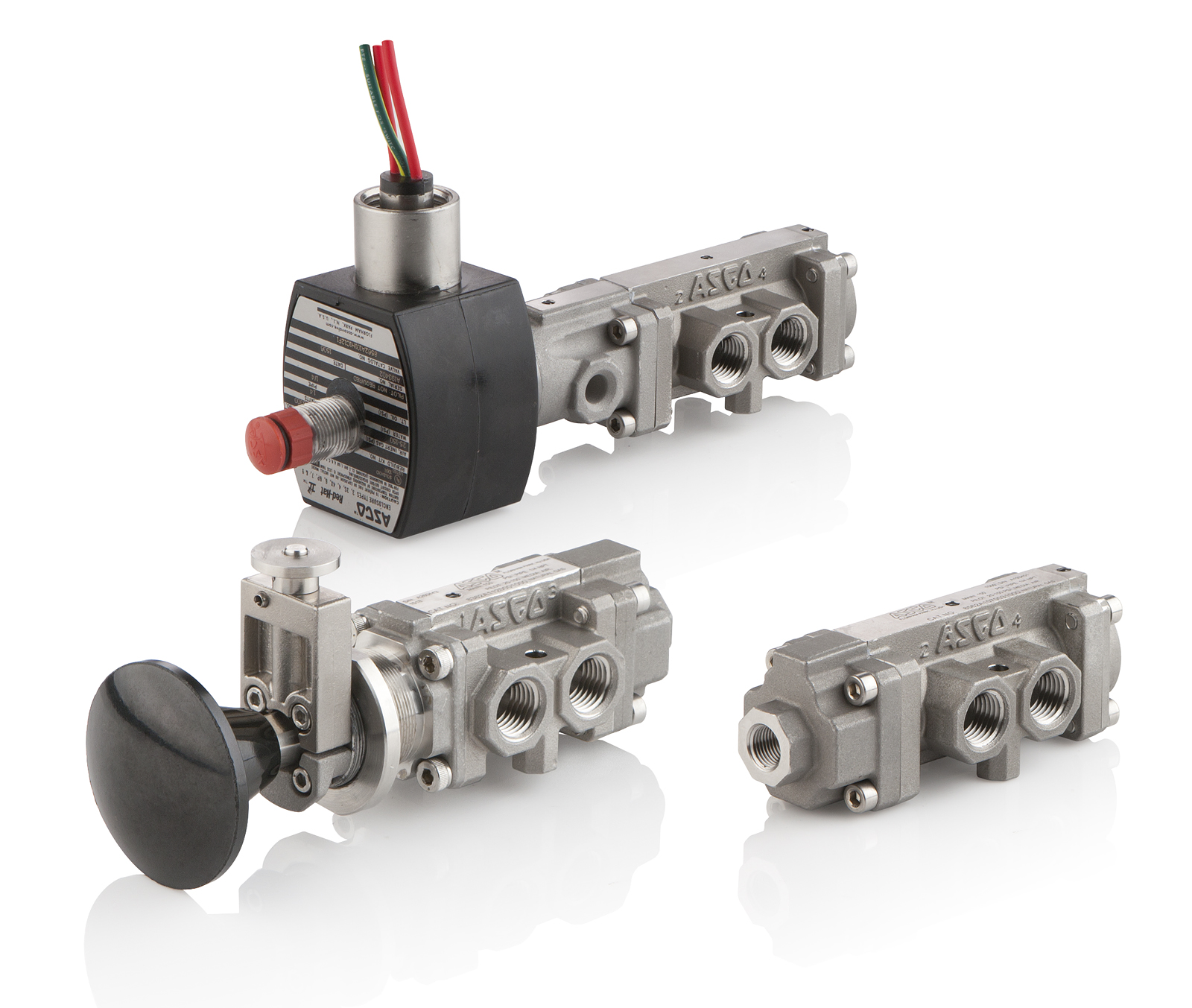

These stainless steel spool valves are for control valve automation in the upstream, midstream, and downstream oil and gas industries and are rated for air, inert gas and sweet dry natural gas. They include low-power solenoid versions that consume only 1.4 watts, while a 0.55 watt solenoid option is coming soon that will be aimed at remote applications requiring alternate energy sources. The 562 Series is a four-way spool valve designed for double-acting process valves, while the 362 Series is a three-way valve made for single-acting process valve applications. Both valve lines are available in 1/4-inch, 316L stainless steel construction for corrosion resistance in harsh environments. Valves are available with multiple pneumatic, manual, latching, and low temperature options. Features include flow performance of 2.0 Cv; corrosion resistant 316 L stainless steel valve materials; solenoid options with factory sealed leads to reduce installation time; explosion proof low power (1.4 and 1.8 watt) solenoid options; ATEX & IECEx, UL and CSA global approval options for hazardous locations
>>For more information on this product, click here
ASCO Numatics
www.numatics.com/express
800.972.2726
