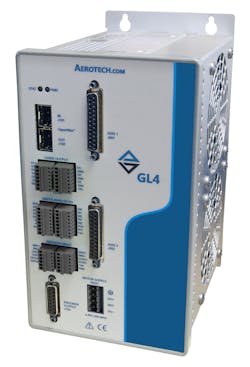

The unit is optimized for the company’s family of AGV scanners to provide fast settling times, long-term thermal stability, and micron-level tracking accuracy. It uses advanced interpolation electronics to provide up to 26 bits of effective resolution while onboard real-time 2D calibration ensures accurate beam placement over the entire field of view. The ability to accurately trigger the laser as a function of position removes the need to program mark, jump and polygon delays, resulting in reduced programming complexity. By using the Position Synchronized Output functionality, scanner-based processes can now be programmed in the same fashion as traditional X/Y stage-based applications. By moving the power stage out of the head, it is possible to use higher-performing transistors to drive the galvos and the heat source is effectively removed from the scanner, resulting in improved system accuracy.
>>For more information on this product, click here
Aerotech
www.aerotech.com
412.963.7470
