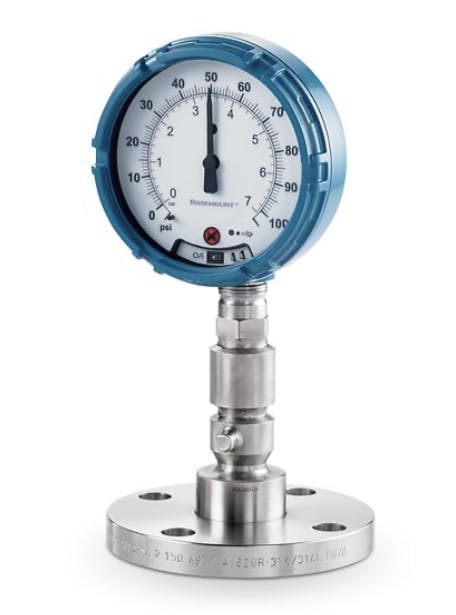

The Rosemount Wireless Pressure Gauge features a robust design with industry-proven sensor technology to resist common traditional gauge failures. This pressure sensor provides up to 10 years of maintenance-free operation and replaces mechanical components for more reliable readings and a higher overpressure limit. This device also features Wireless HART technology that delivers reliable field data communications as frequently as once per minute. Additional features include dual layers of process isolation that deliver plant and personnel safety, local status indication confirms proper gauge operation, and a large 4.5-in. face provides field visibility.

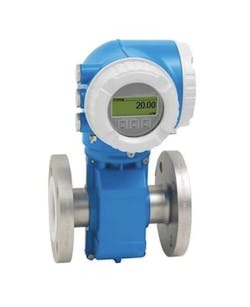

The Proline Promag P300 electromagnetic flowmeter is a high-temperature flowmeter for process applications with a compact, easily accessible transmitter for use in process applications with corrosive liquids and high medium temperatures. The sensor is maintenance free with a nominal diameter of maximum DN 600. The transmitter features full access to process and diagnostic information, freely combinable I/Os and fieldbuses, heartbeat technology, and a PTFE or PFA liner as well as compact dual-compartment housing with up to three I/Os. Backlit display with touch control and WLAN access as well as remote display are available.
The TCT is a universal Pt100 resistance thermometer with class A accuracy according to IEC 60751. It has a compact stainless-steel housing for temperature measurement in liquids and gases. The TCT is available with or without compression fittings and with various connection threads. Designs with protective pipe can also be supplied. The Pt100 element is located inside the tip of the probe. Wetted parts are made from high-grade EN1.4571stainless steel. The TCT is available with Pt100 output or an integrated measuring transducer with a 4-20 mA output signal. Its measuring ranges from –50°C to 150°C and –50°C to 250°C. Various mechanical adaptations and insertion lengths and thermowell options are available. The thermometer has an IP67 rated circular M12 connector.
Sitrans Probe LU240 ultrasonic level transmitter is a compact, intelligent level device for liquid chemical inventory, monitoring small process vessels and level monitoring measurement. Features include HART 7 communications, maintenance-free active face technology, an IP68 potted option with an encapsulated PVDF sensor that is resistant to corrosion, chemicals and extreme shock. Other features include process intelligence echo processing, reduced blanking distance, and a four-button user interface or remote configuration. The module is battery and solar-powered friendly, with low start-up current and 10.5V operation.
