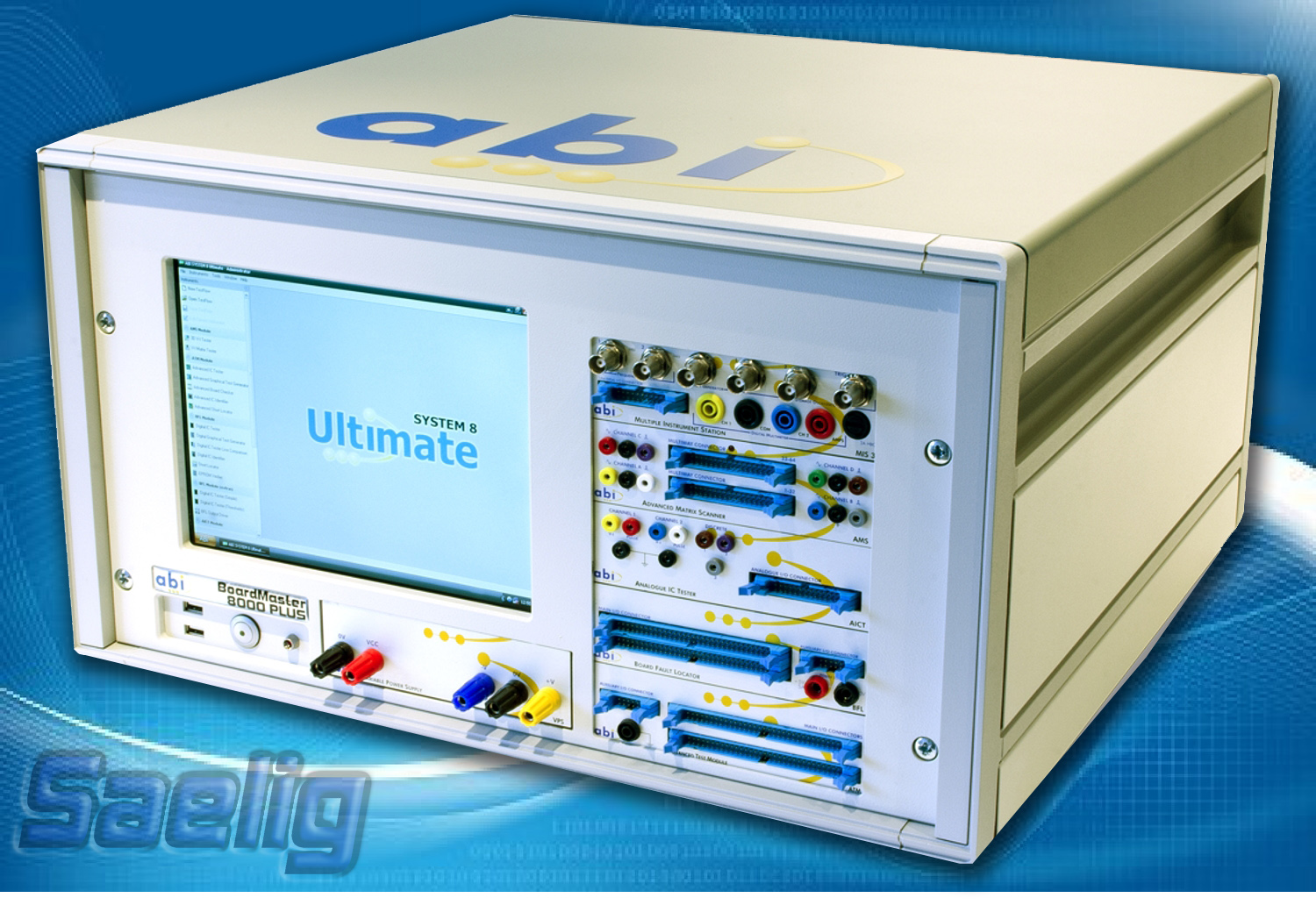

The ABI BoardMaster 8000 PLUS is a comprehensive set of test instruments, complete with built-in PC, for testing and fault-finding on almost any kind of PCB.
The unit is an integrated package of high specification instrumentation controlled by sophisticated but easy to use software. The hardware is installed in a transportable case that also contains a Windows PC. Designed as a modular system, it can be customized for specific applications, and its software can be configured to guide users step-by-step through a test procedure, with custom-annotated picture images, instructions, and attached datasheets to give quick Pass/Fail results. A typical configuration offers two board fault locator modules, with 128 test channels for multiple test methods for fault diagnosis and functional testing of digital ICs (in-circuit/out-of-circuit), IC connections status, and voltage acquisition, V-I curve testing of components on unpowered boards, as well as an analog IC tester for in-circuit functional testing of analog ICs and discrete components (no programming or circuit diagrams needed). The system also includes a multiple instrument station with eight test and measurement instruments in one module (frequency counter, digital storage oscilloscope, function generator, digital floating multimeter, auxiliary PSU, and universal I/O) plus a triple output variable power supply.
