The platform is for municipal or industrial plant water/wastewater treatment.

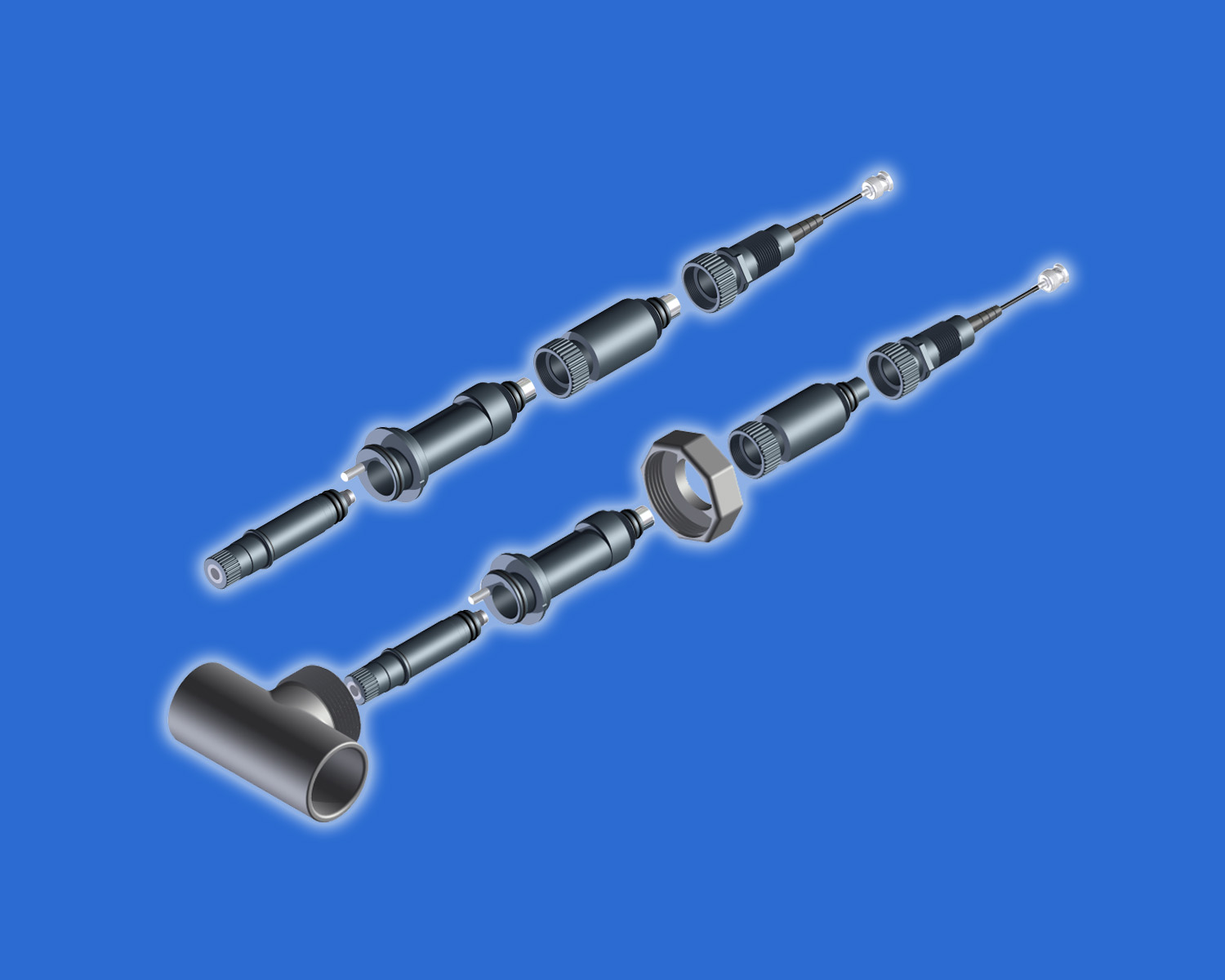

The S8000 Modular pH Sensor Platform is available as a submersion mounted sensor system, reducing measurement costs for open tanks and vessels as part of water and wastewater treatment applications. Intended for measurement in wastewater treatment tanks, all pH electrodes are fully submersible. The electrodes are available with rugged mounting hardware with threads to attach standard couplers as well as pipe to protect the cables from chemical attack. The combination of a next-generation flat surface self-cleaning pH sensor with modular mounting hardware and optional electronics helps deliver precise measurement with reduced maintenance. The same pH/ORP electrode can also be used for in-line mounting applications to measure pH, HF resistant pH, ORP (REDOX) or low ionic pH. Next-generation double junction ERP technology provides a complex path to protect the reference in the presence of interacting ions such as proteins, silver and sulfides that interact with silver or chloride. High temperature reference gels also protect against thermal breakdown.
