Leine & Linde Offers Model 500 Encoders with Stainless Steel Construction for Wash-down and Severe Environments

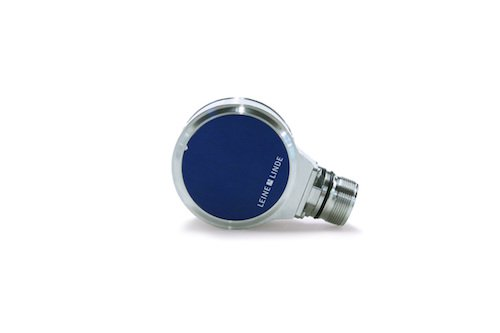

For motion control applications in severe environments or where regular wash-down is necessary, Leine & Linde now offers the popular 500 series rotary encoders in stainless steel versions.

Leine & Linde’s RXI and RXA 500 series are robust incremental and absolute encoders known for their durability and wide range of options. They are used in everything from forestry to windpower, with shaft and hollow-shaft options to suit virtually any application. The new versions offer these encoders offer models with a stainless steel enclosure, flange and shaft to further enhance suitability for application in harsh environments, for example where the encoder is subjected aggressive liquids for washdown in food processing, or salt spray in offshore environments.

Two types of steel are available, 304/A2 or 316/A4, which are both of the austenitic type and can be used in a variety of corrosive applications.Absolute versions of Leine & Linde’s 500 series are available with up to 14-bit single-turn outputs, with parallel TTL, HTL, SSI, and CANopen interfaces. Incremental versions are available with up to 10000 PPR resolution and are capable of operating at temperatures up to 100°C.
