Intelligent brushless DC motors fit in a compact package
Aug. 30, 2012

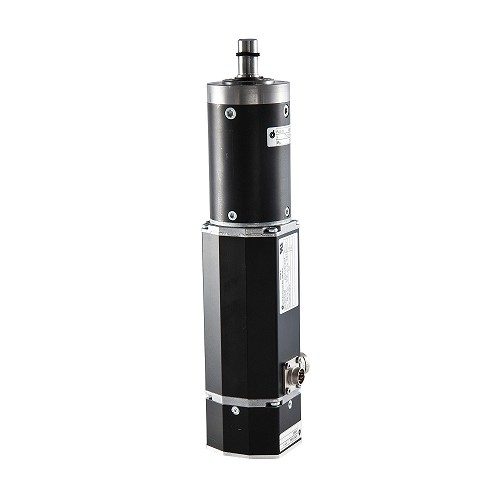

Mouse over the green markers on your computer screen to identify each part of the motor system — motor, gearing, control logic and power, fieldbus interface, encoder and brake — all put together into a compact plug-and-play motion control system. The units are ruggedized for applications from factory automation all the way to solar tracking.
The motors feature high efficiency, highly dynamic acceleration and high power density, and are available with various combinations of electronic commutation, integrated speed control, parameterization software (speed, torque and positioning mode) and integrated communications interfaces, including CANopen, Profibus and EtherCAT.
The motors are notable for:
Very long life
High efficiency
Highly dynamic acceleration
Good regulation characteristics
Wide speed range
High power density
Maintenance-free
Robust design
Integral Hall sensors for rotor position
Low moment of inertia
High degree of protection
Winding insulation - Class E or B
Neodymium magnets
These electronically-commutated DC motors can be combined with control electronics, gearboxes, and encoders in a modular system to provide a flexible, adaptable, market-oriented solution.
