Automation Direct, Inc: Dual rod guided pneumatic cylinders

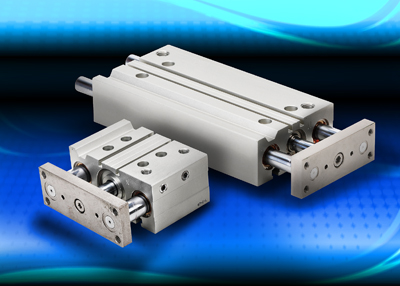

AutomationDirect’s NITRA pneumatic product line now includes E-Series dual rod guided air cylinders ideal for applications that require precise alignment or have large side loads.

NITRA E-series dual rod guided pneumatic air cylinders are interchangeable with other popular brands of cylinders. The double-acting cylinders are constructed with high quality extruded aluminum housing and switch mounting tracks, dual chrome-plated stainless steel guide rods, and bronze bushings.

E-Series cylinders feature a maximum operating pressure of 142 psi and are available in eight bore sizes from 12mm to 63mm; depending on bore size, available stroke lengths range from 10mm to 250mm.

Prices for NITRA E-series dual rod guided air cylinders start at $94.

The complete line of NITRA E-series cylinders can be seen by visiting: www.automationdirect.com/guided-air-cylinders.

To see the full line of NITRA pneumatic cylinder products, go to:  www.autoamtiondirect.com/air-cylinders.
