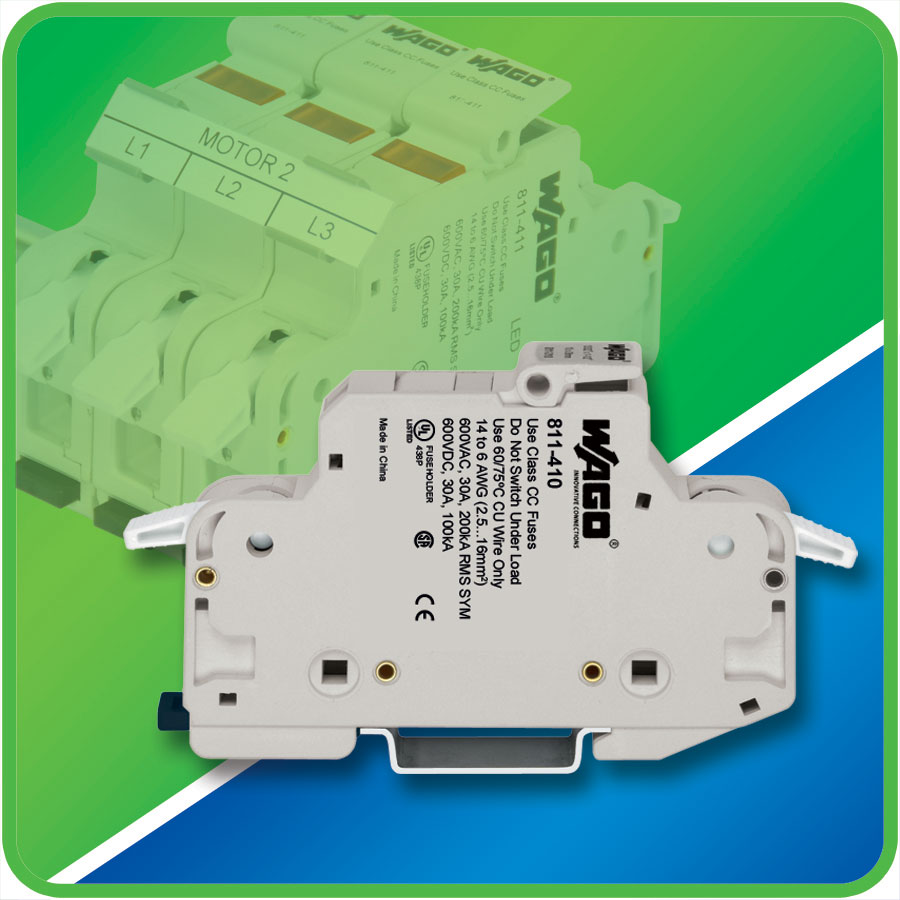

Wago Corporation: Lever-Actuated Class CC, Midget-Style Fuse Holders

The lever-actuated units replace traditional screw-based terminations with an industry-first application of CAGE CLAMP Spring Pressure. Beyond maintenance-free, vibration-proof connections, these lift-and-lock terminations reduce wiring times up to 50% - no torque specs or specialty tools. Accommodating conductors 14-6 AWG, the series is available in one to three poles; an optional coupling kit creates multi-pole configurations in the field. The fuse holder supports branch-circuit applications with up to 200 kA SCCR (30 A, 600 V). The Midget-style variant achieves 100 kA SCCR (30 A, 750 V AC/1000V DC) for supplemental protection - the 1000 VDC, 1-pole model is useful for PV combiner boxes. The touch-safe units feature a DIN-rail mount clip for easy install or removal. Each holder carries a test point at each conductor entry for general testing and carries UL, CSA and IEC listings, recognitions and certifications.
