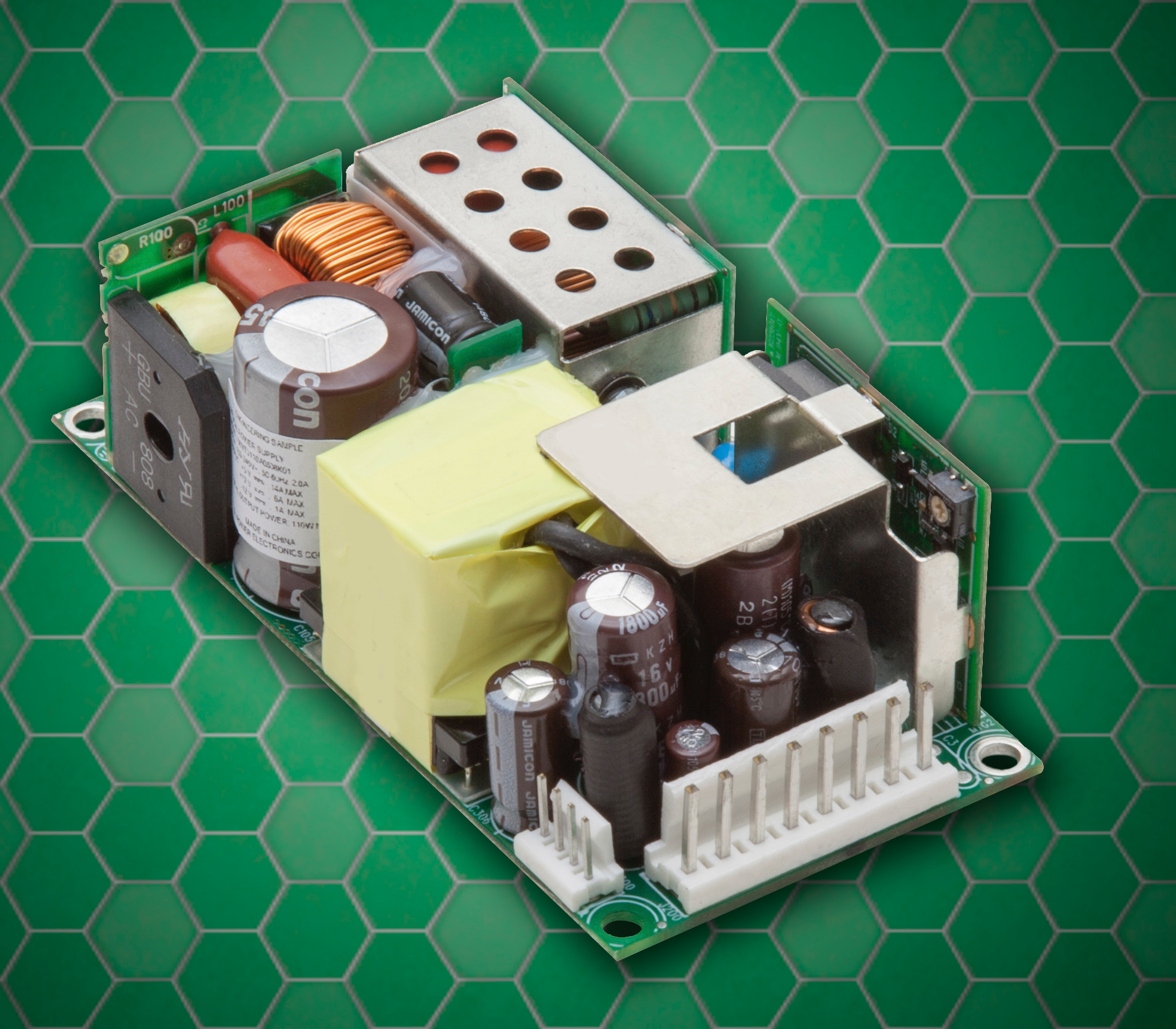

The unit is approved to EN/IEC/UL60950-1, 2nd edition and is suggested for test & measurement, diagnostic, process control and other industrial applications. The open frame supply operates from -10 to +70 °C over a 90 to 264 VAC input range and is fully compliant to EN61000 for static discharge, conducted and radiated RF, EFT/burst, line surge, magnetic field, line flicker, and voltage dip. Measuring 2 X 4 inches and less than 1U (1.3 inches) high, the supply is suitable for 1U high rack-mount enclosures and other size-constrained equipment. It provides 110W of output power with up to 90 percent efficiency at 240 VAC. The triple output power capabilities eliminate cross talk and provide tightly regulated DC power in a variety of configurations that save user's costs by eliminating the need for additional DC/DC converters. Supplies provide three outputs: a 5 V main output and various combinations of auxiliary outputs (±12 V, ±15 V, ±24 V). The main +5 V output can deliver 10 A continuously with standard convection cooling, and up to 14 A with forced air cooling. The 24 V outputs can supply 3 A and 4 A respectively.
