4-20 mA Current Loop Transmitter Board Provides Channel-to-Channel Isolation

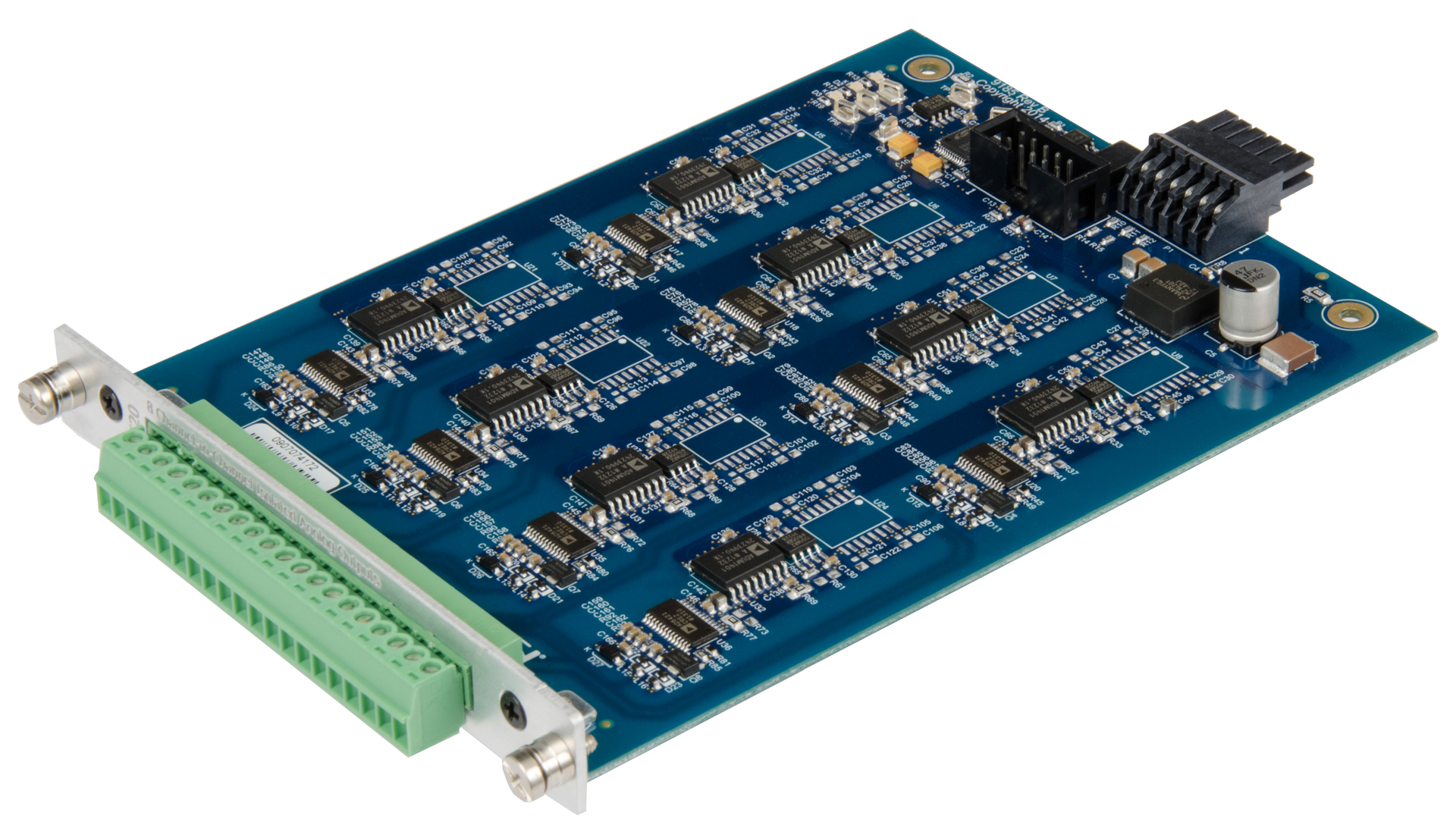

Sealevel Systems, Inc. adds a new 4-20 mA current loop board to the SeaRAQ family of I/O expansion designed for Relio industrial computers. The 4-20 mA signal standard remains a popular method for signal transmission in harsh environments, even over long distance. Current loop has a low sensitivity to electrical noise and is not affected by signal loss over cable runs or interconnections. Offering eight 4-20 mA transmitter channels, the 6520 board is perfect for controlling a wide variety of industrial process control and test equipment that use 4-20 mA signaling.

The 6520 provides 1500 VAC field-to-logic and channel-to-channel isolation to prevent ground loops in measurement systems and protect the host computer from harmful voltage spikes and surges. Field wiring connects to the boards using 20-position, removable, high-retention Phoenix terminal blocks compatible with 16-30 AWG wire. The board 4-20 mA transmitter is loop powered and compatible with 18-32 VDC.

Sealevel's SeaMAX software drivers and utilities make installation and operation easy using Microsoft Windows and Linux operating systems. The 6520 is available immediately from stock priced at $469. Standard operating temperature range is 0 - +70°C, and like all Sealevel I/O products, the 6520 is backed by free technical support and a lifetime warranty.
