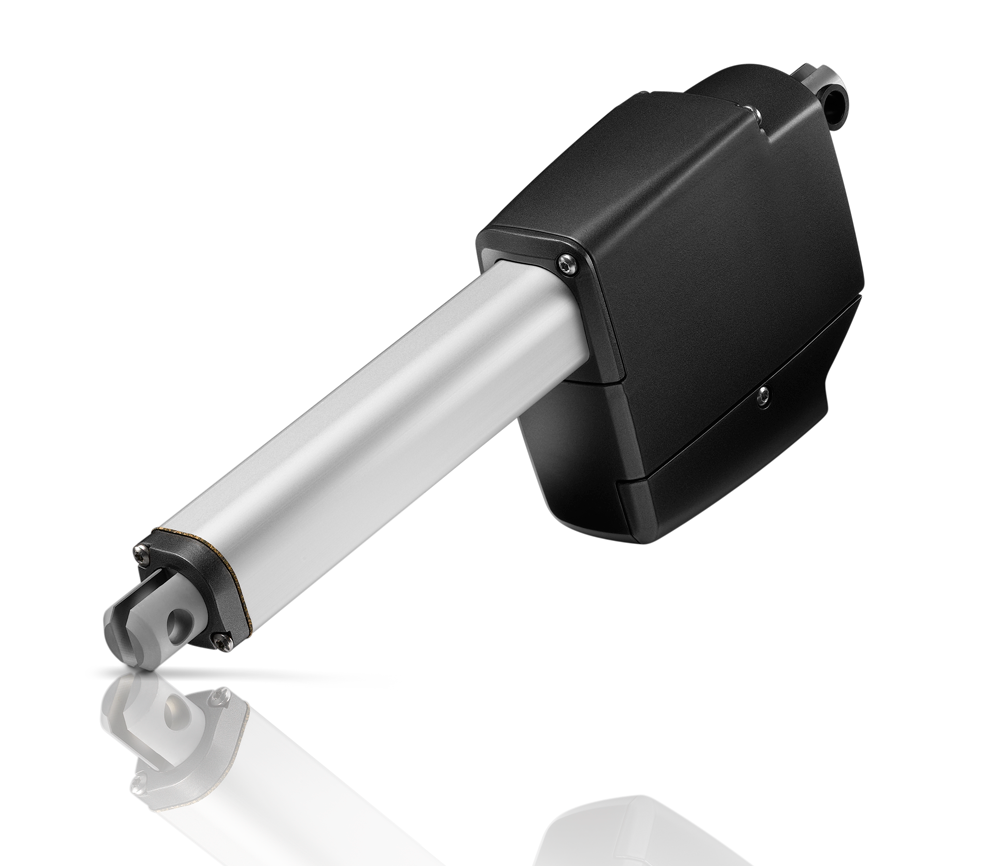

The unit's compact size makes it suitable for applications with limited space combined with the need for power, IP protection and integrated intelligent features. The actuator features a robust aluminum housing, IP66 & IP69K protection and the company's iFLEX integrated intelligent control as an option, which includes an integrated H-bridge that enables the unit to require less space and fewer cables than traditional actuator solutions. The control box is built into the actuator for easy and convenient installation. Actuators are available with stroke length of 20 to 300 mm, output thrust from 900 to 2500 N and speed to 13 mm/s. Other features include a built-in electrical endstop, an end-of-stroke signal and maximum noise level of 58.5 dBA. Positioning options include Hall potentiometer, Hall PWM or single Hall.
>>For more information on this product, click here
LINAK U.S. Inc.
www.linak-us.com
502.253.5595
