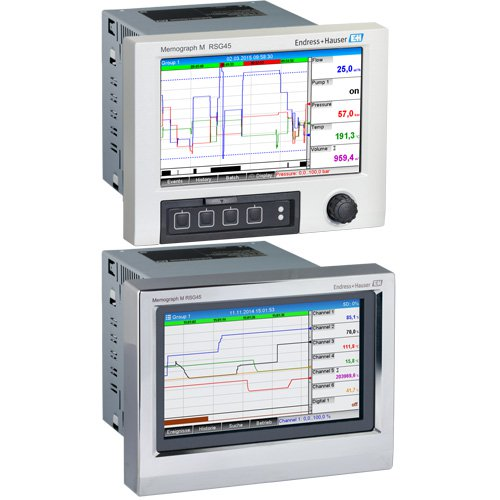

Endress+Hauser’s Memograph M RSG45 offers up to 20 inputs for HART signals, using the 4-20 mA signals as well as all four HART values on a field device. In addition, Memograph M offers a HART gateway function. With it, the data manager allows direct access from an FDT Frame Application such as FieldCare to the field devices without an additional HART modem or a loop interrupt. Thus, parameterization of the field devices can be done easily from the control room, making it easier to get more information from the field.
Communication and integration flexibility
Memograph M provides new industrial Ethernet based communication protocols, like PROFINET. Common Fieldbuses like Modbus RTU, Modbus TCP and PROFIBUS DP, are available as well.
User friendliness and retention of well-known features
User-friendly operation of Memograph M is provided by a front-panel navigator. A stainless steel version offers touch screen control. Furthermore, the device can easily be set up with the help of a powerful web server which provides perfect functions for remote operation of RSG45.
