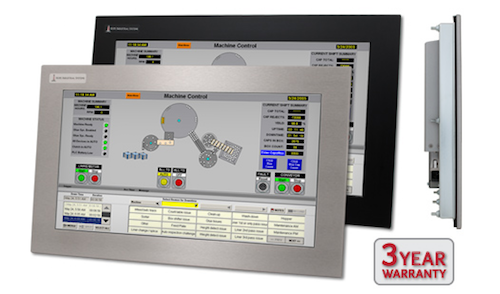

Hope Industrial Systems is excited to introduce our new 19.5" Full HD monitors, touch screens, peripherals, and mounting options. These 16:9 1080p widescreen monitors are available in either Panel Mount or Universal Mount enclosures constructed of stainless or black powder-coated carbon steel. Input power can be either AC or DC (9.6 to 36.6 VDC).
This new 19.5" series of displays complements our 23" (16:9, 1080p) and 22" (16:10) widescreen displays. And like all our other industrial monitors, the 19.5" models have been certified by UL for Type 12/4 and 12/4/4X environments and have UL508 certification.
Hazardous location rated models (Class I, Division 2 for Groups A, B, C, D; Class II, Division 2 for Groups F, G; Class III; Temp Code T4A) are available as well.
Features and Specifications
Check out some of the features of these new monitors:
Superior Picture Quality
Bright, high contrast display - 250 nits, 3000:1 (typical)
High resolution - 1920 x 1080 (16:9 aspect ratio)
Analog Resistive Touch Screen, Tempered Glass, or Acrylic Protective window options
Industrial sealed enclosure - UL certified for Type 12/4/4X environments
Long life backlights - LED; 40,000 hours brightness half-life
VGA and Digital Video (DVI) inputs
Industrial Touch Screen
5-wire resistive
Emulates a mouse
USB and Serial RS-232 inputs
Rugged Design
Black powder-coated carbon steel or stainless steel faceplate
NEMA/UL Type 12/4 or 12/4/4X rated for wash-down applications
High temperature range, up to 50°C (122°F)
High shock and vibration specs
Tempered glass or touch screen window
Panel mount capable without drilling stud holes
High Reliability
40,000 hour backlight brightness half-life
3-year warranty!
Small Footprint
Panel Mount
Bezel outline only 20.75" W x 13.0" H (527.0 mm x 330.2 mm)
Only 1.97" (50.0 mm) deep
Universal Mount
20.25" W x 12.5" H x 3.25" D (514.4 mm x 317.5 mm x 82.6 mm)
Industrial Certifications
CE, UL 60950, UL 508A, UL 50E, FCC Class A, IEC 60721-3, CAN ICES-3A/NMB-3A
VESA Mounting Bracket (optional for Panel Mount Monitors)
Supports up to 25 lbs.
