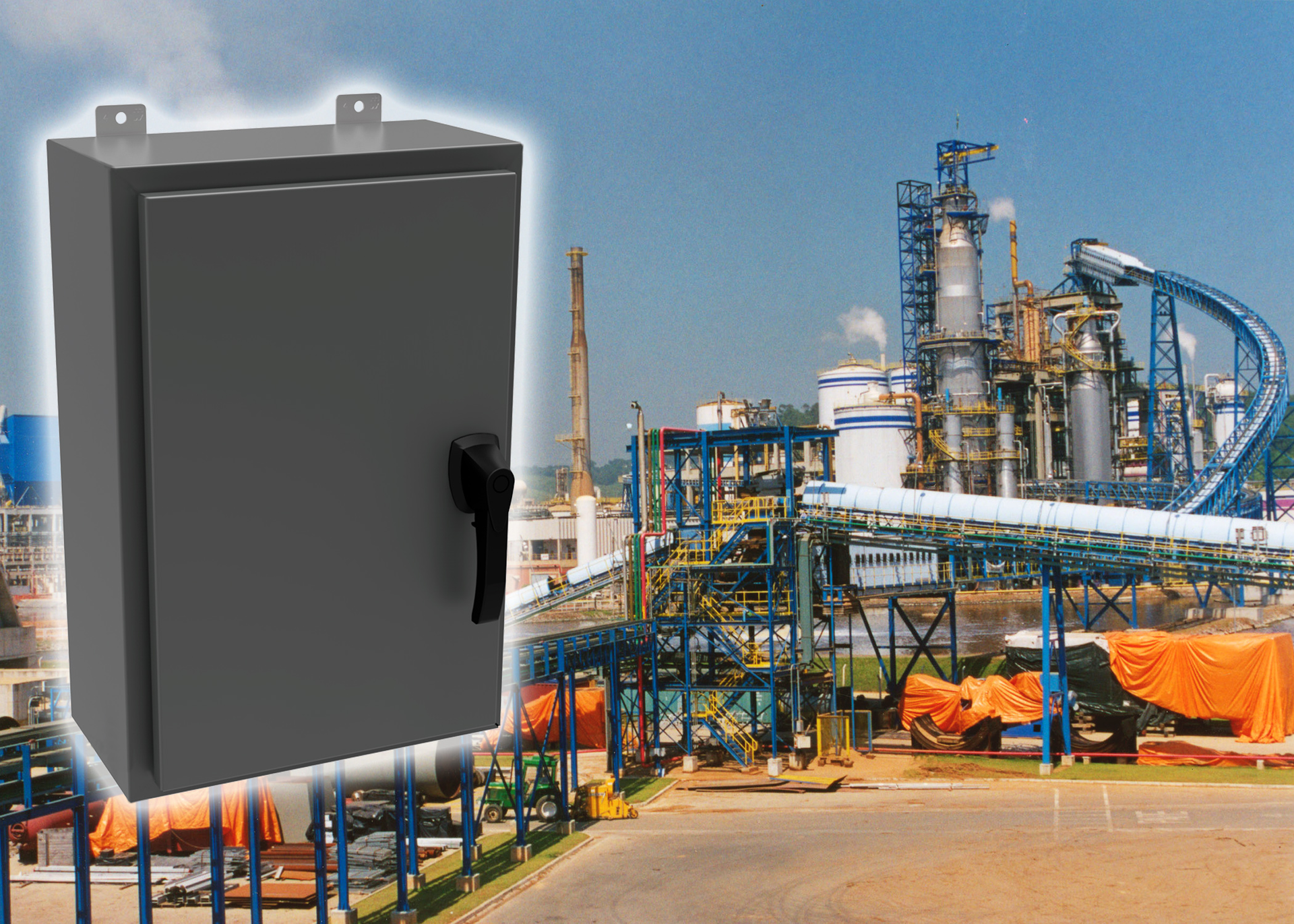

Available in 30 sizes in six heights from 24 to 60 inches, five widths from 16 to 36 inches and five depths from 6 to 16 inches, the units are for use in heavy industrial plants, utility, outdoor municipal or other locations where the enclosure sits in harsh conditions and is frequently opened for internal equipment access. Access is via a handle with padlock provision, which operates a three point roller latch locking system that seals with minimum effort in opening and closing the door. The full height stainless steel piano hinge enables 180° door opening, and the removable hinge pin allows the door to be demounted if required. The enclosures are made of 14 gauge mild steel, finished with a recoatable smooth ANSI 61 gray powder coating to both the interior and exterior, ground-smooth continuously welded seams, a formed lip to exclude flowing liquids and contaminants and a seamless poured-in place gasket. It meets the requirements of UL 508 Type 3R, 4 and 12, CSA Type 3R, 4 and 12, NEMA 3R, 4, 12 and 13 and IP66 to IEC 60529. Available accessories include a removable inner mounting panel, gland plates, passive or active thermal management, drip shields, windows and grounding kits, and modified versions are available on short delivery times.
>>For more information on this product, click here
Hammond Manufacturing Co. Inc.
www.hammondmfg.com/
519.822.2960
