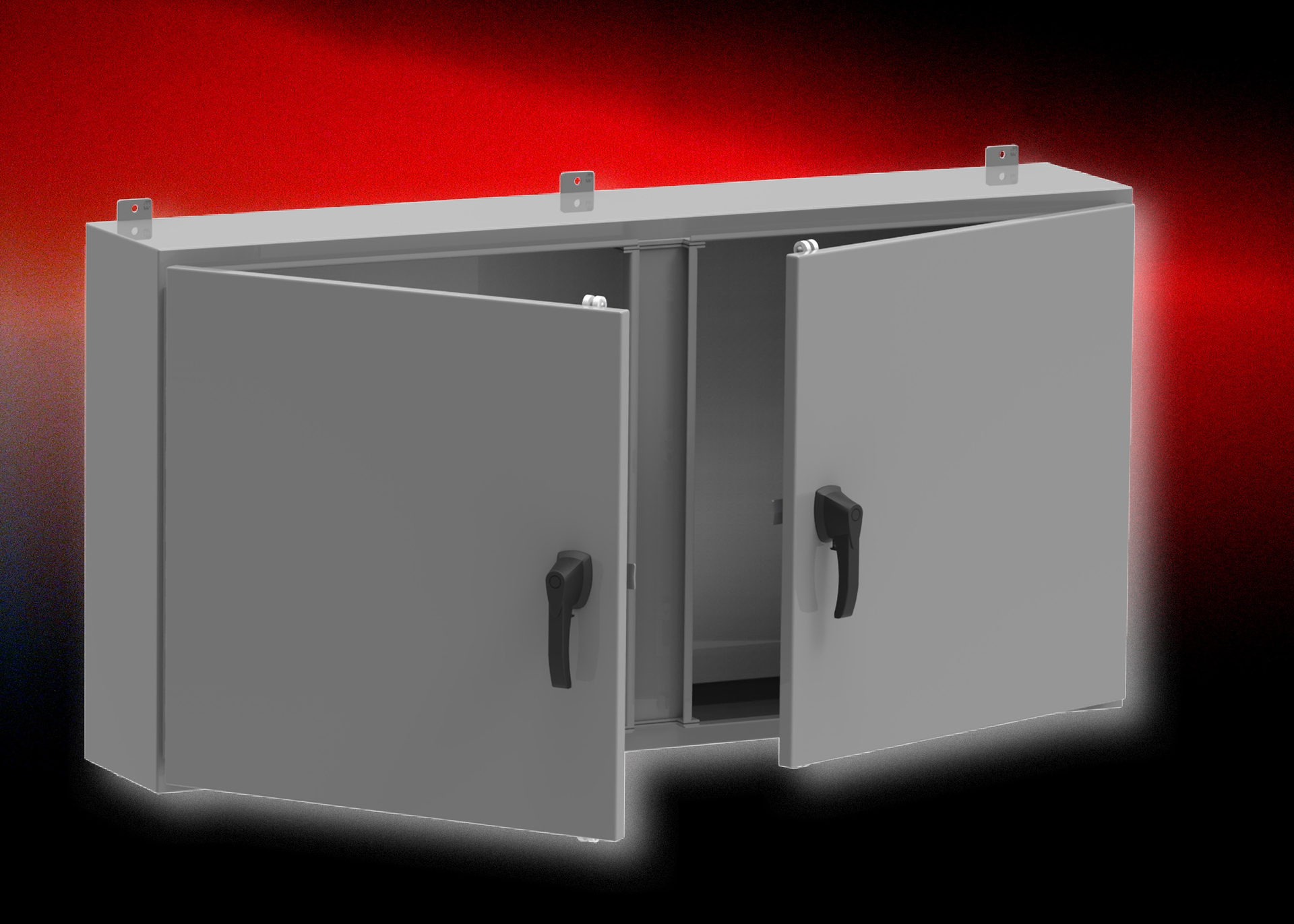

The HN4WM Series from Hammond Manufacturing are sealed to UL 508 Type 4, CSA Type 4 and IEC 60529, IP66, providing protection where the enclosure may be hosed down, installed in wet or dusty conditions or outdoors.
The strong and rigid enclosures are designed to house a wide variety of electrical, electronic, hydraulic or pneumatic controls and instruments. There are 12 standard sizes in the family, ranging from 24 x 42 x 8 inches to 48 x 48 x 12 inches. Made from formed 12 gauge steel, phosphatized and finished in recoatable smooth ANSI 61 gray powder coating, all sizes have smooth, continuously welded seams without knockouts, cutouts or holes. The doors have a seamless poured-in-place gasket for long life environmental sealing after repeated opening and closing cycles. The doors are attached with heavy gauge continuous hinges and feature three-point locking system with a padlockable handle for added security. A removable inner panel is included and is finished in white powder coating, while the center post between the doors provides added structural rigidity and is removable for easy installation of the inner panel. A grounding stud is provided in the enclosure and a bonding stud is provided on the door; ground wire kits are available as an optional accessory.
>>For more information on this product, click here
