Compact DC/DC Converters Save Space in Mobile Equipment and Industrial Electronics

March 20, 2019

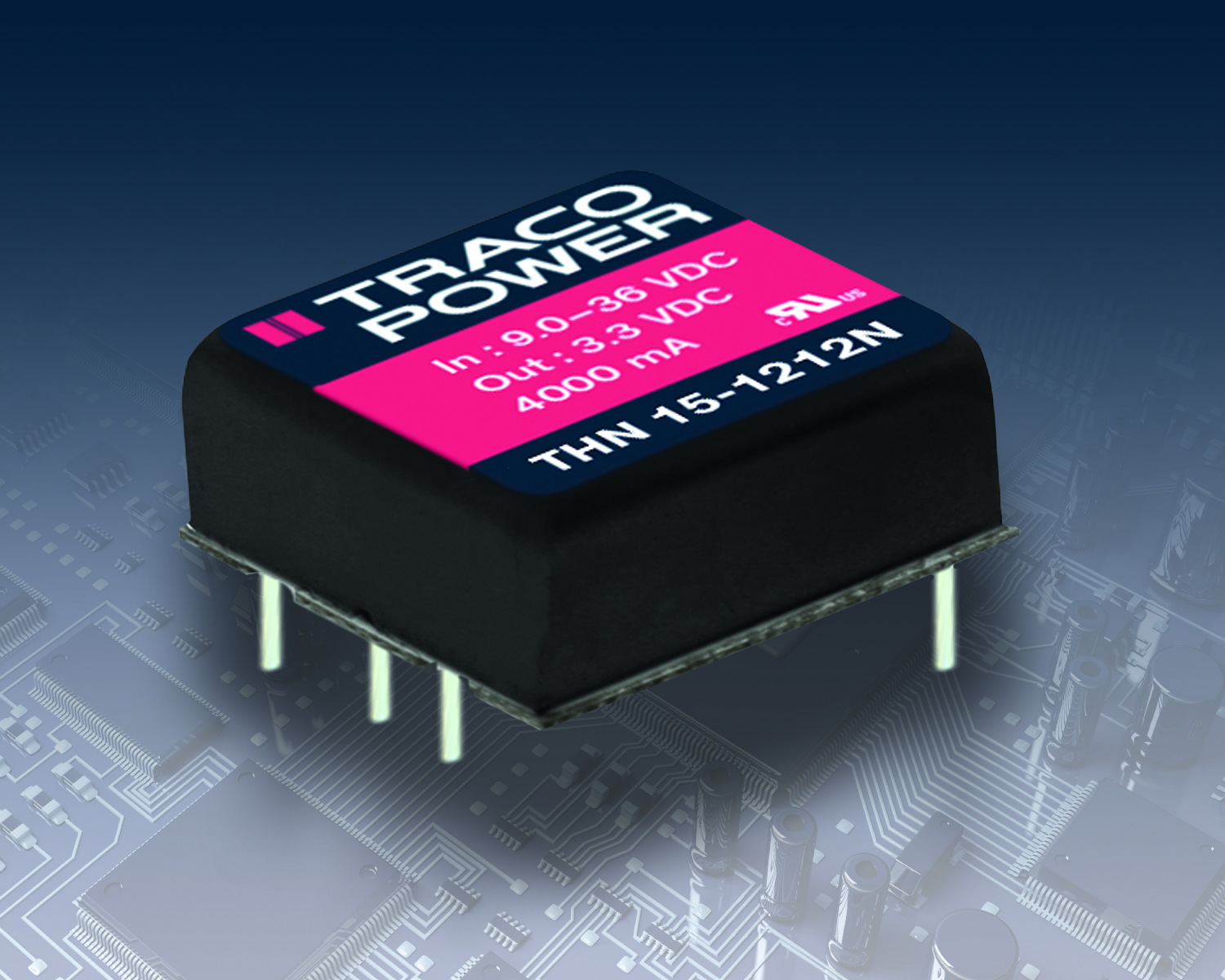

The THN 15N series from TRACO Power features reduced no-load power consumption and EMI Level A compliance.

The converters are suitable for use in mobile equipment, instrumentation, distributed power architectures and industrial electronics applications, particularly when space is limited in PCB designs. The units measure 1x1 inch and feature a 2:1 input range of 9-18/18-36/36-75 V with single and dual outputs ranging from 3.3 to 24 VDC. Efficiency of 86 to 91 percent enables a full-load operating temperature range of -40°C to +70°C (up to 105°C with derating). Input-to-output isolation is 1600 VDC; other features include remote on/off control and a voltage trim function inside a 6-sided shielded metal case with an insulated base plate. All models are safety approved to IEC/EN/UL 62368-1, are qualified to meet EN 55032 Class A conducted emissions limits and can meet Class B limits with the addition of external components. Reliability is measured at >1.6 million hours per MIL-HDBK-2175.

>>For more information on this product, click here
Traco Power USA
https://us.tracopower.com
408.916.4570
