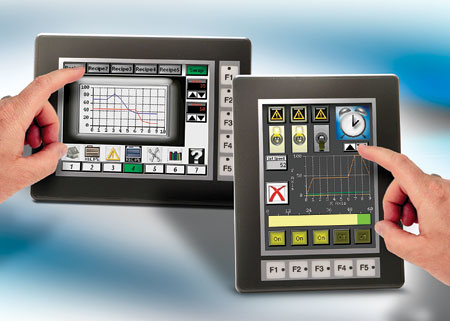

The C-more micro family now offers a 6-inch TFT color touch screen HMI panel.
The panel’s 32,768 colors provide clear and colorful graphics for
vibrant and intuitive screens, says the vendor. The free programming
software offers the choice of using built-in objects or importing
custom graphics. The user can create and save custom objects and
graphics to software libraries for fast and easy access from multiple
projects. The 6-inch touch panel is equipped with a standard Type B USB
programming port and five durable function keys with LED indicators.
The unit offers 3.2Mb memory, LED backlight, multistate bitmap support
and Windows font support. C-more micro’s 320x240 screen allows either
portrait or landscape installation when space is a concern. The panel
is priced at $399.AutomationDirectwww.automationdirect.com800.633.0405
