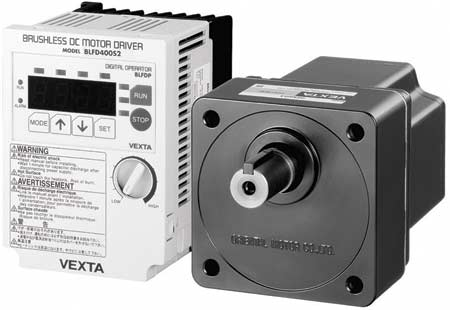

The BLF series of brushless DC motor and driver speed control packages are RoHS compliant, and offer high output power in both 200W and 400W power sizes.
The driver box controls the brushless DC motor from 80 to 4000 rpm, a speed range of 50:1, with a total speed regulation of 0.6 percent due to specified load, voltage and temperature variations. A new digital operator provides programmable control features that allow selection of various options including: three display modes, a multi-speed operation available with up to 8 selectable speeds, four speed setting methods, and overvoltage and electric shock protection per UL and EN safety standards. A IP65 digital operator can be detached from the driver and used at a location as far as 16.4 feet (5 meters) away, using an optical remote control kit. Oriental Motor USA Corp. www.orientalmotor.com 800.418.7903
