Boeing’s New Approach to Fuselage Assembly

May 20, 2014
Advanced Integration Technology combines motion control, servo drive platforms, failsafe CPUs, distributed I/O, and Ethernet networks to design a fully automated positioning and joining system for the Boeing 787.

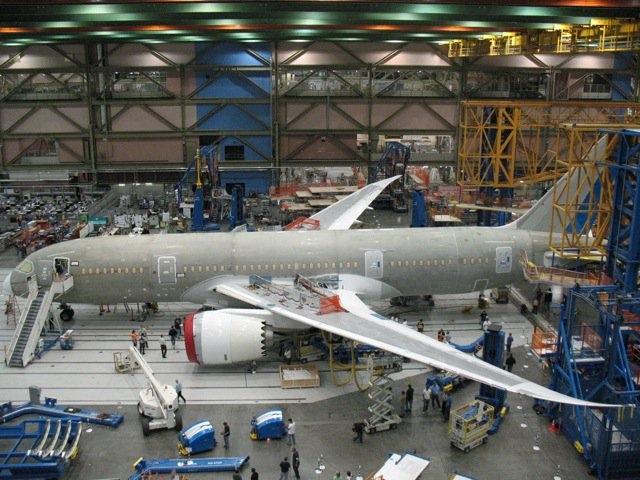

The Boeing 787 Dreamliner has been as widely maligned for its engineering problems as much as it was once heralded as the best example of future commercial airline design. Despite a few very public missteps surrounding some of the plane’s components, one of the 787’s clear successes can be found in its modern, automated assembly processes, developed by Advanced Integration Technology (AIT).

Advanced Integration Technology (AIT) is a supplier of turnkey industrial automation systems for the aerospace industry. The company builds integrated manufacturing, tooling and assembly systems for commercial and military aircraft produced by companies such as Boeing, Bombardier, EADS, British Aerospace, Lockheed Martin and others.

For the Boeing 787, AIT was charged with designing and building a fully automated positioning and joining system to join the plane’s major fuselage components. Key elements of the assembly systems designed by AIT include a motion control system, servo drive platforms, failsafe CPUs and distributed I/O, with the entire hardware suite communicating over a Profinet network.

To fulfill Boeing’s requirements, AIT designed two complete assembly systems and one positioning system. These systems are used to join the three main sections of the fuselage. AIT designed the alignment and positioning systems to allow rolling them under the aircraft dollies after the sections are brought into the Boeing factory. By doing this, AIT was able to dramatically reduce auxiliary equipment needs, materials handling requirements and additional positioning steps in the assembly process.

AIT’s assembly system includes 14 positioning system components that lift and move the aircraft sections during assembly. A software application created by AIT, calculates how much each section of the aircraft (e.g., nose, tail, wings) needs to move to ensure an exact fit to the adjoining section. This process ensures precise alignment of each section of the aircraft’s fuselage.

Specifically, AIT’s assembly systems are used to join Section 41 (forward fuselage), Sections 47/48 (aft fuselage) and Section 12 (left and right side wings) to the mid-fuselage of the 787 aircraft.

The automation components comprising AIT’s motion control system include a Siemens Simotion D motion controller (used to control all axis movements to position parts), Siemens HMI on a Windows-based PC, a Siemens Simatic S7 PLC for safety, and multiple I/O modules.

This architecture was used for the control nodes in each operational system in the production line designed by AIT. According to Ed Chalupa, president of AIT, each unit is capable of working independently of the others in the line; or, with the addition of a few Profinet cables and mode selections, the final body join assembly tool can be run as a single entity.

When running together, the safety devices work together to provide required response levels to all E-stop events on the line. Each unit motion controller receives commands to perform uniform group movements with the tool as a whole via network communications from the HMI.

For information on Boeing's industrial networking approach, see also: Split Network Provides Flexibility and Security.
