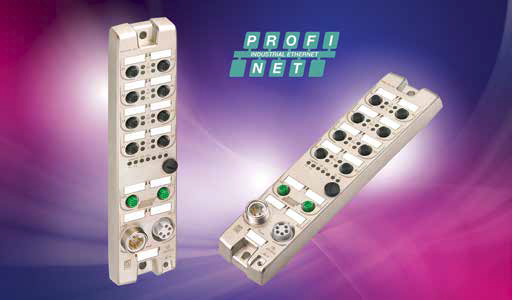

The three IP67-rated units provide additional support for real-time and isochronous real-time communication and offer 16 digital channels configured as inputs, outputs or a combination of both. All versions come with an encapsulated metal housing, vibration-resistant M12 connection technology and short-circuit proof outputs. Galvanic separation between the I/O channels and the LAN connection ensures reliable data transmission. The behavior of output channels in the event of a fault can be defined via a fail-safe function (PROFINET). Diagnostics allow faults to be located swiftly. An integrated dual-port switch (10/100 Mbit/s) allows both line and ring topologies. The IP address for the modules is set up via the BOOTP or DHCP protocol. The controller user interfaces can be used for direct configuration of the modules. The optimum arrangement of the I/O slots makes them easy to use, even with T distributors. The units have operating temperature range of -10 to +60 °C and a 24 VDC power supply for industrial environments.
>>For more information on this product, click here
