Maxon Motor: Right Angle Gear Gives Maximum Torque in Minimum Space

Sept. 10, 2012

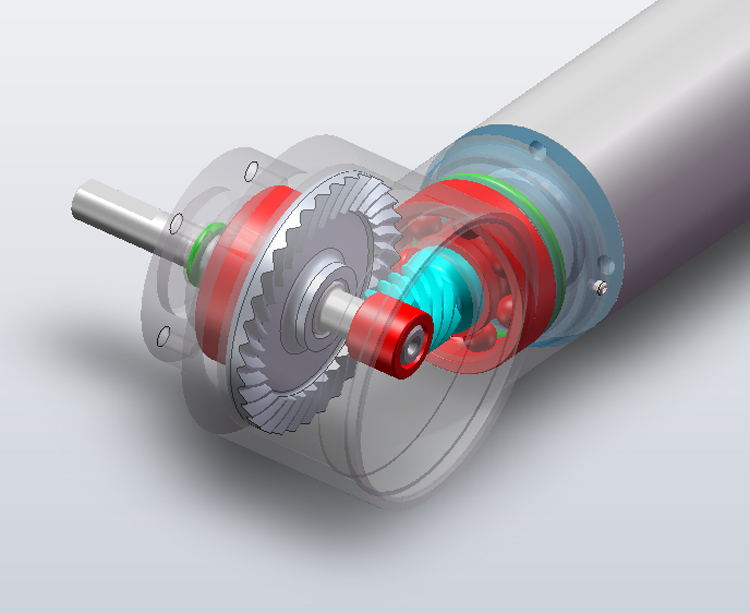

These 22 mm and 32 mm right angle gearheads provide an adjustable 360° right angle output for demanding applications.

The Spiroid technology in the design offers a number of performance benefits:
Extremely high torque transmission, high stiffness/low deflection with large applied loads, back-drivable (4:1 ratio) & non-back drivable (31:1 ratio) versions available, absolute output shaft position achievable with encoder mounting option, compact size, ability to orient the output shaft 360° at any time, low backlash, up to 3:1 contact ratio and quiet operation. Gearheads are available in either a 4:1 or 31:1 ratio, which may be mounted directly onto many of the company's brushed/brushless motors or stacked on different ratios of the company's GP22 and GP32 planetary gearheads. This results in a wide range of achievable gear reductions. The motor and gearhead combinations are suited for a variety of applications, particularly where an output shaft perpendicular to the motor axis is desired.
