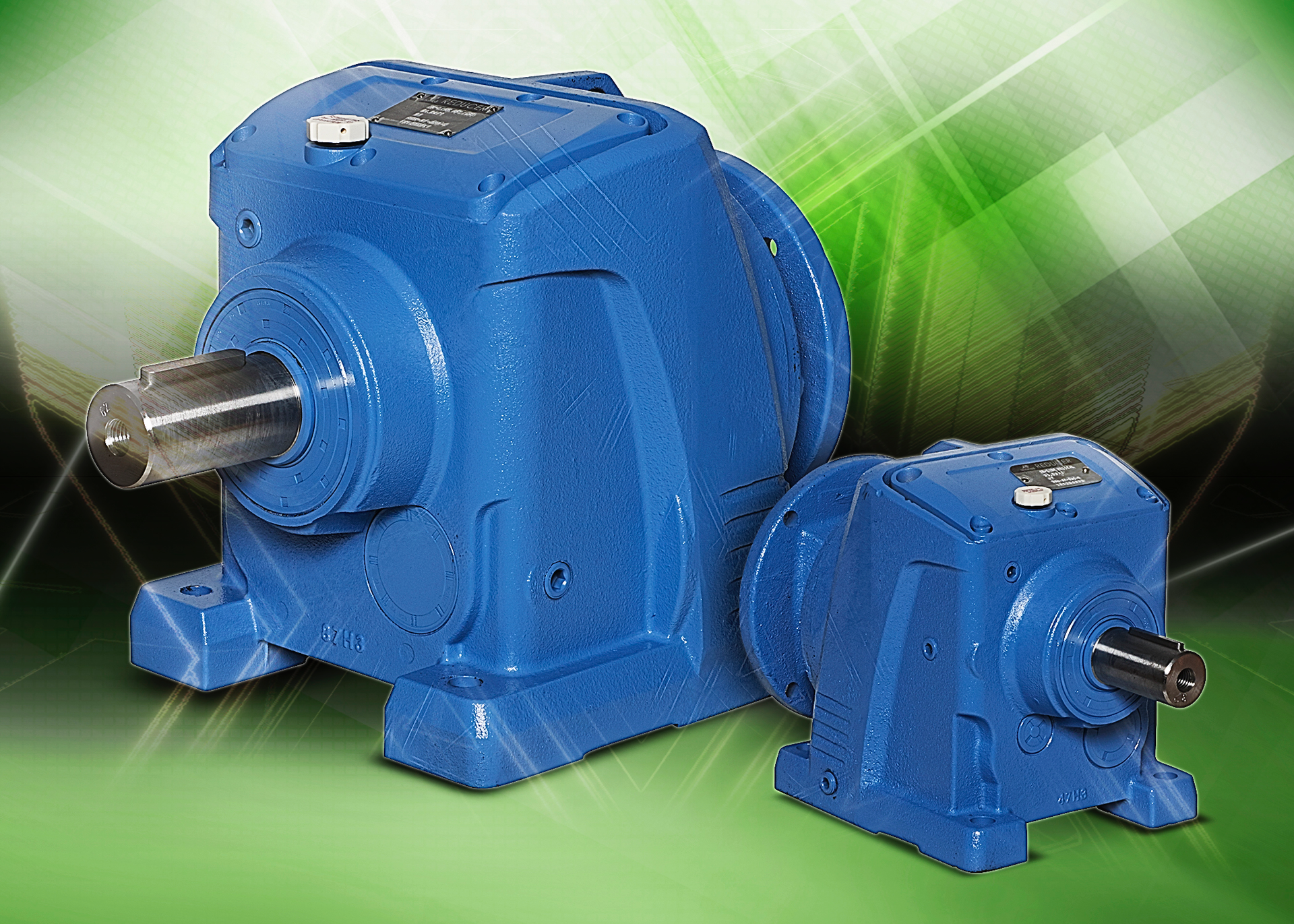

They reduce output speed while increasing torque in applications such as conveyors, packaging machines, rotary tables, and more. Designed for use with 1 hp to 20 hp electric motors, they feature C-face and TC-face inputs and inline outputs, and are available in five frame sizes ranging from 56C up to 254/6TC with six nominal ratios of 5:1 to 60:1. Manufactured in an ISO9001-certified plant, the gearboxes are constructed of FC-20 cast iron one-piece housings, and feature a carbon steel shaft protected with shaft sleeves, as well as heat-treated and ground high-strength steel gears. An interior channel guides oil to directly and constantly lubricate heavy-duty bearings on the output shaft; double-lipped embedded oil seals prevent leakage. Mountable in most directions, the universally interchangeable compact design ensures easy OEM replacement.
>>For more information on this product, click here
AutomationDirect
www.automationdirect.com
800.633.0405
