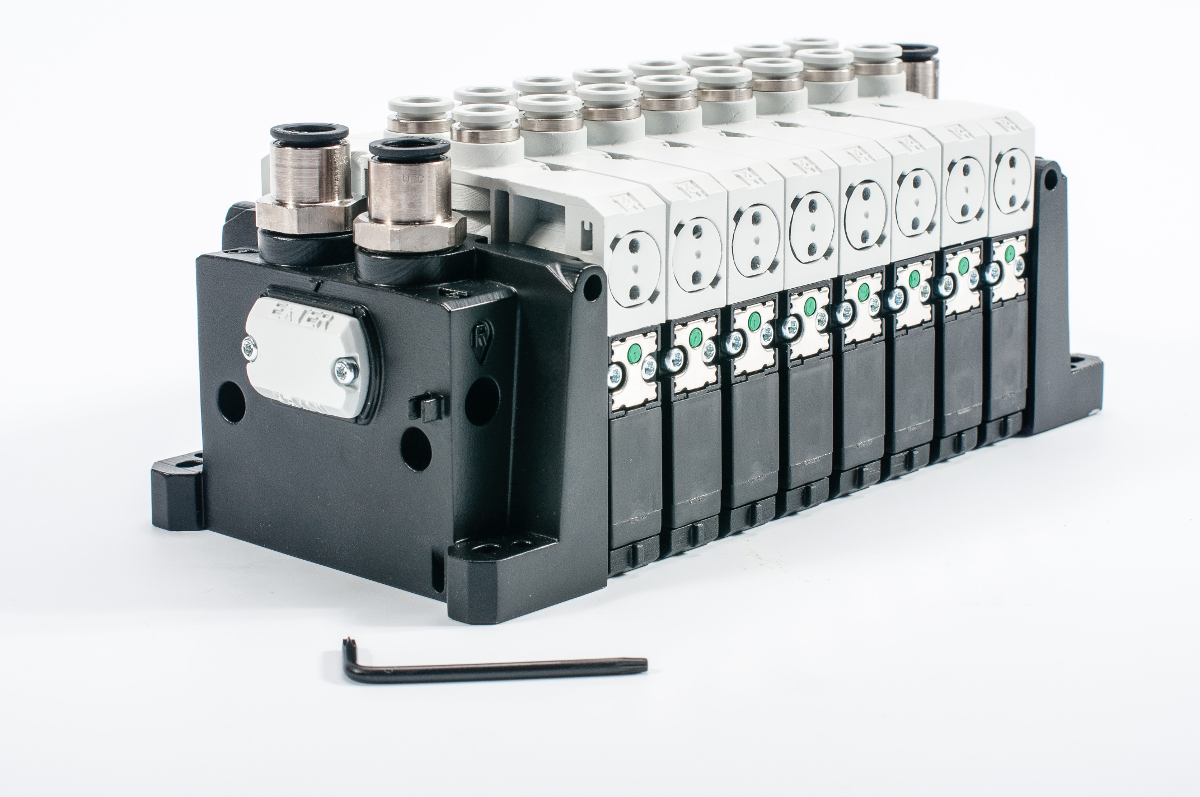

The modular system uses only 25 components; each of which is unique, making incorrect installation virtually impossible, and assembly is completed with one single tool. All fittings are of the same type and tightened with the same torque, which further simplifies assembly and prevents errors. The portfolio also includes the Essential Test Box, which makes it possible to test the correct function and leak-tightness of the valves before installing the system. The valves come in a robust housing made of high-performance polymers, are stable and compact, and provide flows up to 0.61Cv. Users connect the end and base plates (available with metric or inch ports) and can extend the system in pairs up to twelve single or double solenoid valves. The valves are controlled via single wiring with a type CI connector according to ISO 15217, a D-Sub connection with 25 pins, with AES valve electronics, or an integrated IO-Link interface. If necessary, the pilot coils can also be turned at a later stage to realize mixed connection configurations. With a switching time of under 35 ms for all valve functions, highly dynamic action is guaranteed for short cycles. With single wiring, the valves comply with protection class IP65, while all other connection types comply with class IP50.
>>For more information on this product, click here
Aventics
www.aventics.com/us
859.259.3855
