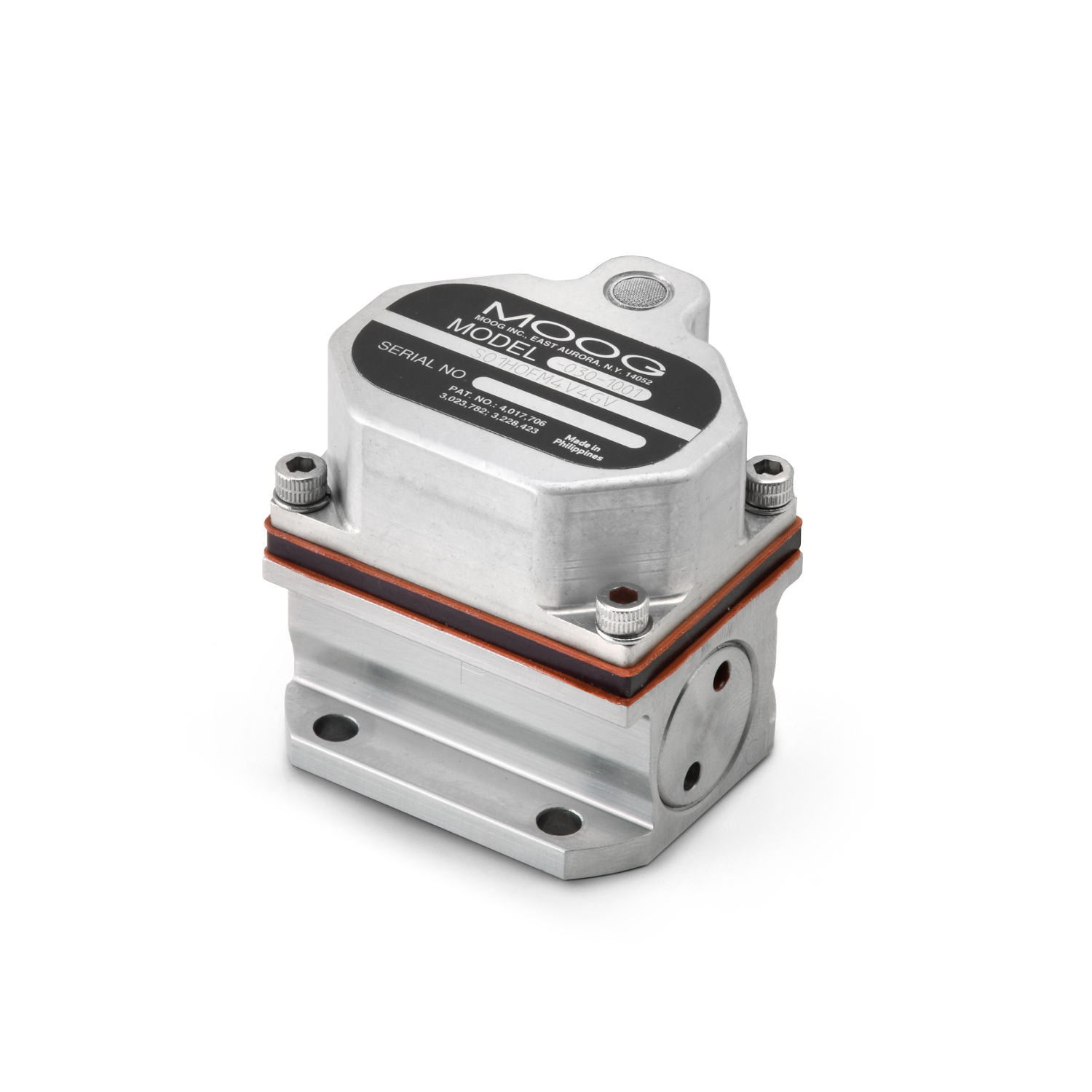

The valve provides a rated flow from 0.47 to 6.9 lpm (0.125 to 1.85 gpm), and a step response of 2.5 ms at 210 bar (3000 psi). Maximum operating pressure is 310 bar (4500 psi). The high dynamic response assures accurate pressure control in dynamic pressure applications, and can make things like operating a remotely-operated vehicle easier. Weighing 185 grams (6.5 ounces) and measuring 4.0 cm (1.6 in.) by 3.4 cm (1.3 in.) by 3.9 cm (1.5 in.), the valve has a power density equivalent to 6 hp. Along with oil & gas, suggested applications include autonomous vehicles, AGV/ROV, manipulators, downhole tools, robotics for unstructured environments, human-scale robotics, mobile robotics including construction, collaborative robotics, quadrupeds, humanoid robots, biomimetic, exoskeletons, haptics, virtual reality, simulation and training.
>>For more information on this product, click here
Moog Inc.
www.moog.com
716.652.2000
