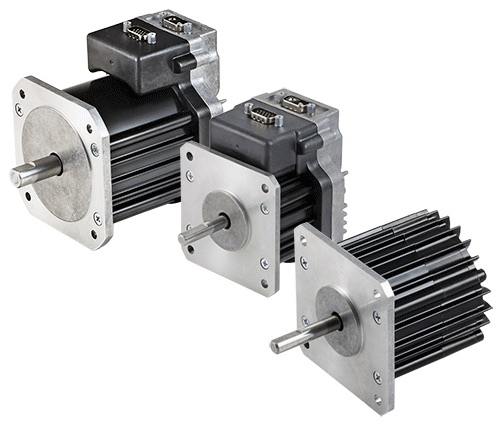

The unit features quieter operation and longer life than brush DC motors without the need for brush maintenance. Suggested applications include AGV vehicle traction or steering, medical patient-handling equipment, rotary/linear actuators, pumps, mobile HVAC blowers, and material handling systems. The motor offers three standard stack lengths with continuous rated power up to 370 W, continuous rated torque up to 1.3 Nm (190 oz-in), and rated speed of up to 5150 RPM. The 12, 24, or 48 VDC winding voltage choices make the unit suitable for battery-powered applications. Command inputs may be: ±10 VDC, 4-20 mA, or via an optional CANopen or Modbus port. Customized winding designs and voltages, shaft, and mounting options are available to meet custom application requirements. Options include integrated gearboxes, stainless steel shaft, 9 or 10 mm diameter shaft, pre-made connectorized cables, integral holding brake, sealed ball bearings, IP67 protection level stainless steel shaft and more.
>>For more information on this product, click here
Allied Motion Technologies
https://www.alliedmotion.com
716.242.7535
