Sanitary Thermowell/Removable Sensor

March 23, 2011

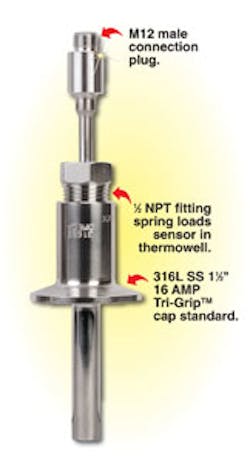

This product can be used in clean-in-place systems allowing the sensor to be removed for calibration or service without disturbing your system.

The sensor includes a 4-wire, Class-A, PT100 RTD with an M12 connector plug. The thermowell is 3-A approved, with wetted surfaces made from 316L stainless steel and a surface finish is 32 micro-inches or better. Temperature range of the sensor is -50 to 200 degrees Celsius (-58 to 392 Fahrenheit) and is compatible with 2, 3, or 4-wire RTD instruments. Perfect for food and dairy processing where Clean-in-Place or Sanitary Processing is required and also ideal for pharmaceutical manufacturing.

 Omega Engineering - www.omega.com
