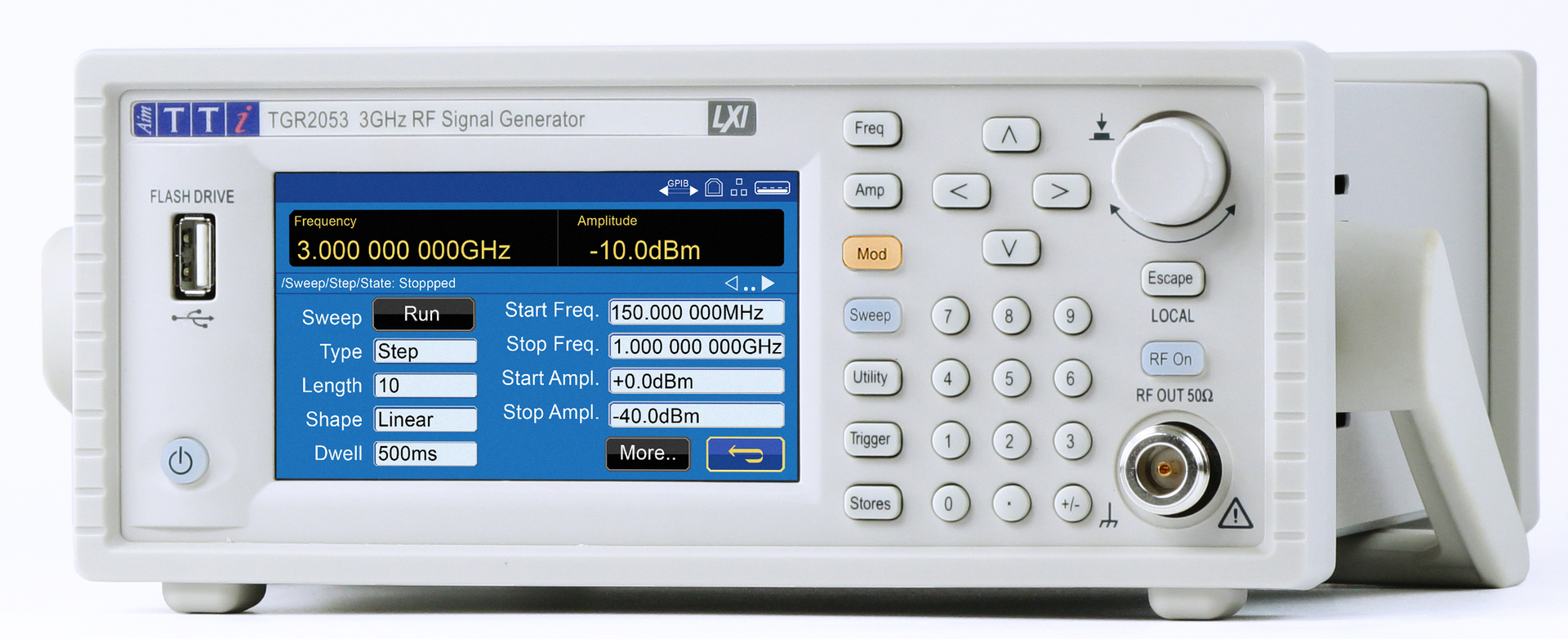

These RF generators provide excellent frequency accuracy and stability, large signal amplitude range, low phase noise, and extensive analog and digital modulation capabilities. Output power levels from -127 to +13 dBm are available with 50 VDC reverse voltage protection. Both models feature a simple, user friendly, touch-operated GUI, with the 4.3-inch color LCD clearly showing all relevant information and settings. Parameters can be adjusted from the menu on the LCD touch-screen or by using the front-panel keys and rotary wheel. A front-mounted USB flash drive allows pre-defined complex setups, sweep lists, and modulation patterns to be loaded into the instrument quickly and efficiently. 4 GB of non-volatile internal memory is provided for storing multiple setups, sweep lists, arbitrary modulation patterns and more. Up to 1000 complete setups can be stored internally. The instrument's built-in DDS generator provides sine, square, +ramp, -ramp and triangle waves, and these can be applied in AM, FM, or PM from the internal modulation source at frequencies ranging from 1 mHz to 1 MHz. External analog modulation signals can be applied via the rear panel. Digital modulations include FSK, GFSK, MSK, GMSK, HMSK, 3FSK, 4FSK, PSK, ASK, and OOK. Built in NRZ patterns include square wave, 7, 9, 11 & 15-bit PRBS. Digital modulation capabilities also include advanced filtering: Gaussian, Raised Cosine, Root Raised Cosine, and Half Sine, as well as Grey Code and Binary Encoding.
>>For more information on this product, click here
