Integrate Existing BACnet MS/TP Fieldbus Modules Into an IP Network

Oct. 14, 2021

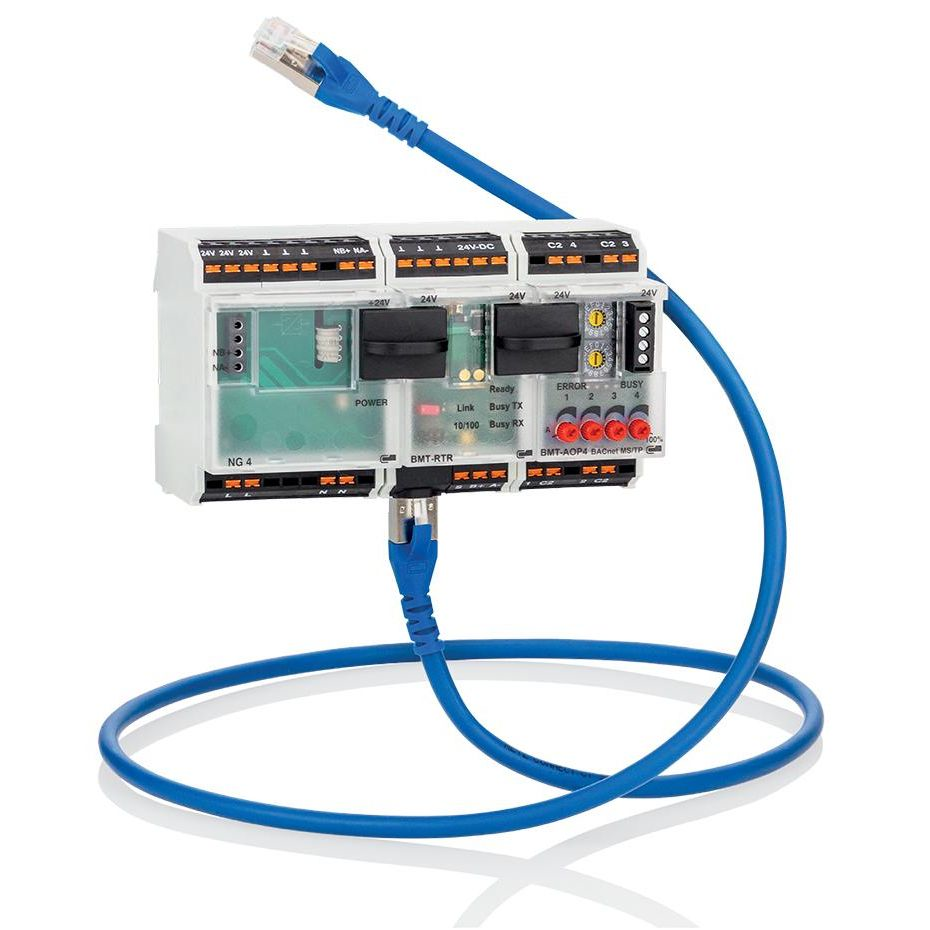

METZ CONNECT's new BMT-RTR is a compact multi-network router that allows routing between BACnet/IP, BACnet Ethernet, and BACnet MS/TP networks. In addition, 32 BACnet MS/TP devices can be run on the router, allowing unlimited transfer of BACnet objects between the BACnet/IP and BACnet MS/TP network.

The BMT-RTR router can be run as a BACnet/IP to BACnet MS/TP or BACnet Ethernet (ISO 8802-3) to BACnet MS/TP router. Using the integrated web server, the BACnet router can be reached on an IP network. The configuration of the device and the parameterization of the two interfaces (Ethernet/RS485) is performed with a user-friendly web interface or the software "MC-Search Utility" downloaded at metz-connect.com. The router also has a logging tool for the troubleshooting and analysis of the data that is sent.

Features

Benefits

  • Connection of 32 BACnet MS/TP devices per line
  • Simple integration of BACnet MS/TP devices in a BACnet/IP network
  • Ethernet available everywhere in the building
  • No restriction on cable lengths
  • Reliable and fast communication between automation and field equipment
  • Technology and manufacturer-independent
