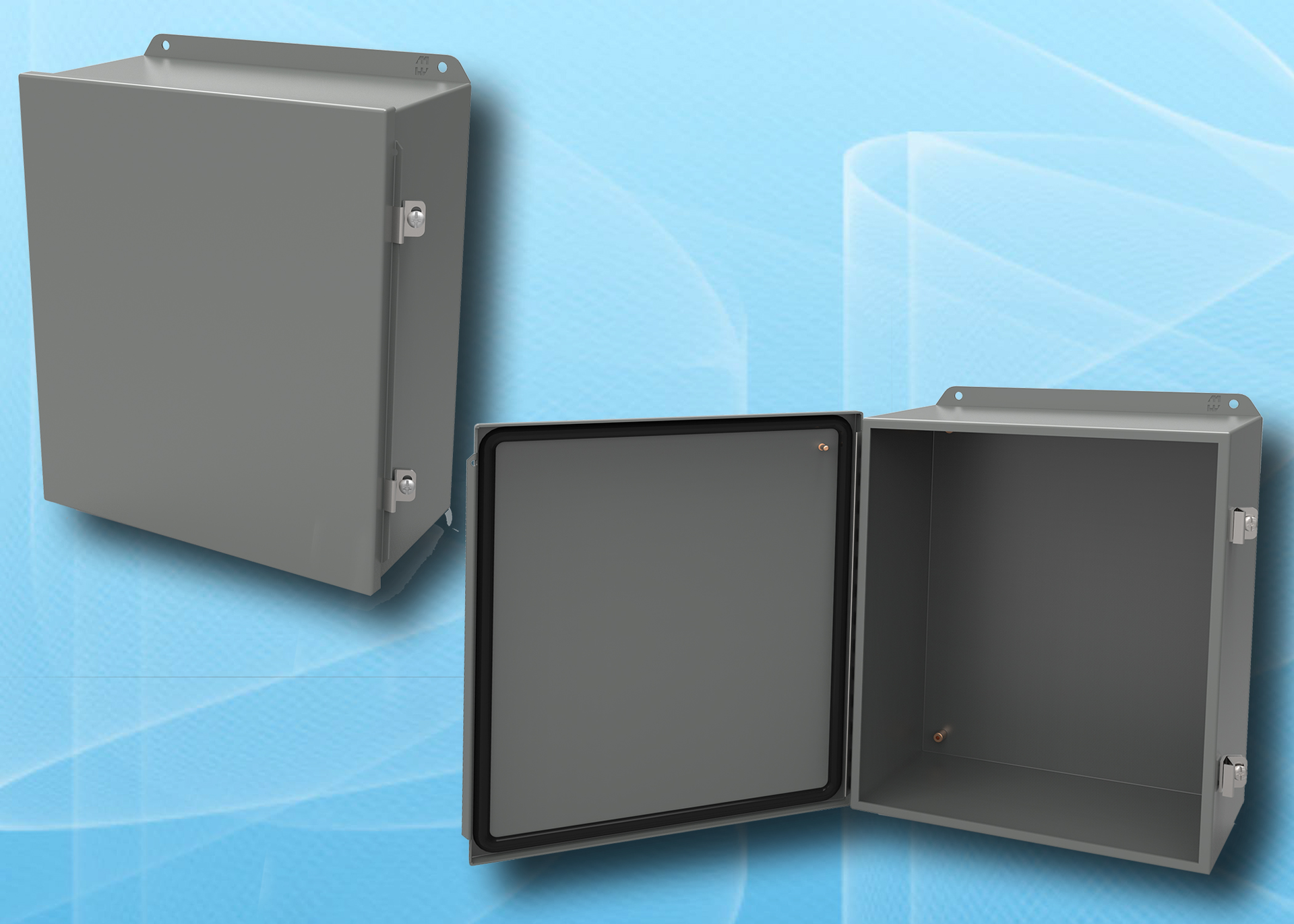

Designed for wall or bulkhead mounting, the enclosures are for housing electrical and electronic equipment in installations where dust and/or water protection is required. The family is suitable for use to house instruments, as electrical, hydraulic or pneumatic control housings, an electrical junction boxes or terminal wiring enclosures. An initial 27 sizes, ranging from 4.0 x 4.0 x 3.0 inches (100 x 100 x 75 mm) to 16.0 x 14.0 x 10.0 inches (400 x 350 x 250 mm), are available from stock. STEP, DXF and PDF drawings of all sizes can be downloaded from the company's Web site. Bodies are 16 or 14-gauge steel, while the covers 14-gauge, powder coated in ANSI 61 gray. All seams are continuously welded and smooth finished, and there are no cutouts, knockouts or holes. External stainless steel hinge and hinge pin, and two stainless steel clamps-one if the height is 6 inches (150 mm) or less-achieve the environmental protection, pulling the cover evenly down on to the seamless poured-in-place gasket. The stainless steel hardware allows the units to be hosed down and installed in outdoor locations.
