High-performance Fanless Box PC

Feb. 9, 2010

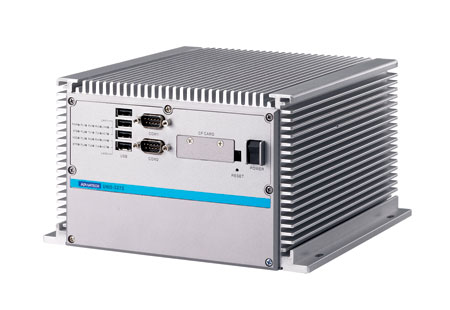

The UNO-3272 is a Fanless Box PC equipped with a Celeron M 440 1.86GHz CPU, 1GB DDR2 SDRAM, 2 x Gigabit Ethernet ports with teaming function, 4 serial communication ports (2 RS-232 and 2 RS-232/422/485 with Auto Flow Control), 2 PCI expansion slots, audio, DVI-D, VGA dual video output and 1 external CompactFlash slot.
The UNO-3272 supports SATA RAID 0/1 function, allowing users to back up their operating system, applications and important data if they have installed two hard drives. A Gigabit LAN port supports teaming function with fault tolerance, link aggregation and load balance features. The UNO-3272 supports Windows 2000/XP/Vista, Linux or Embedded OS such as Windows XP Embedded and Embedded Linux.Advantech Corp. Industrial Automation Groupwww.advantech.com/ea800.205.7940
