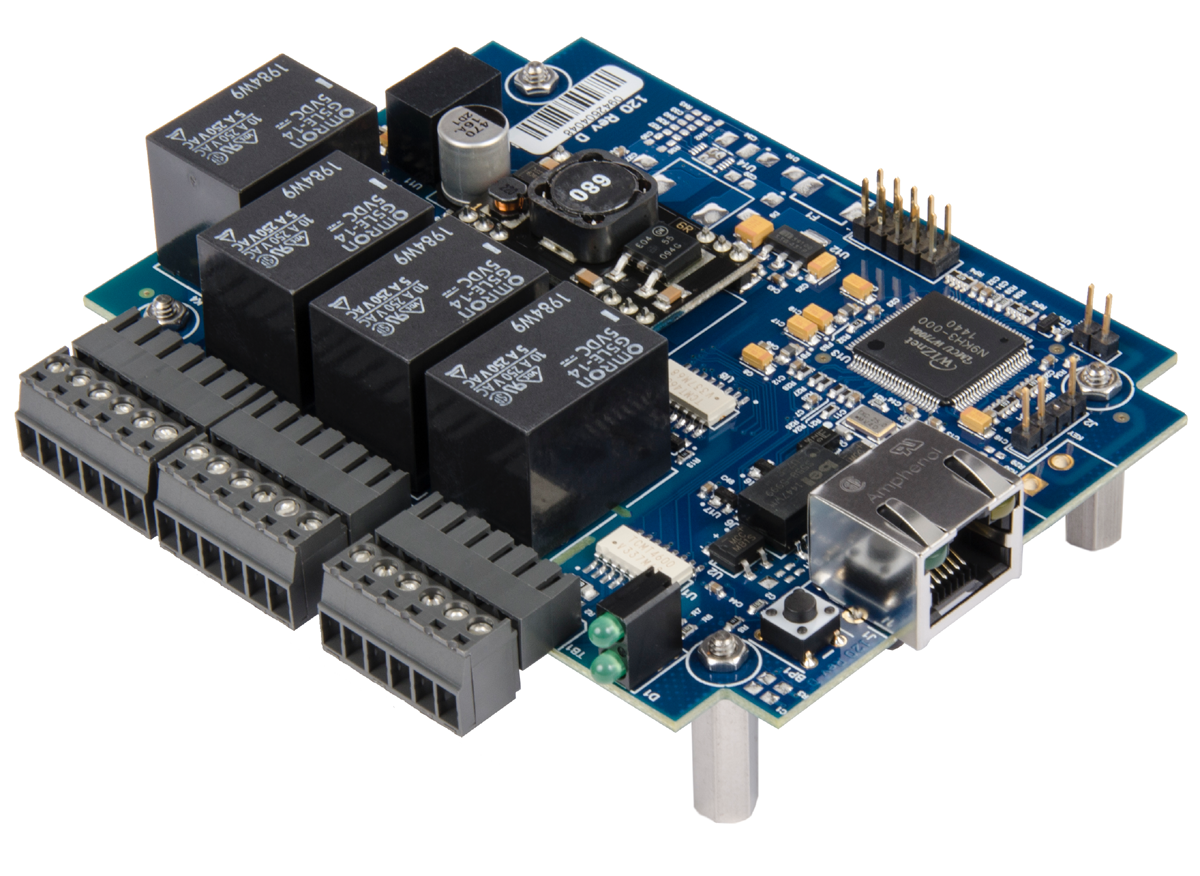

Intended for commercial and industrial computing applications requiring an embedded Ethernet I/O solution, these OEM modules provide system designers with a compact, low-cost monitor and control alternative for a variety of applications including process control, facility management, security, and broadcast automation. Available in six I/O configurations, modules include reed, form C or solid-state relays; optically isolated or dry-contact inputs; as well as A/D functionality. I/O connections are simplified via removable 3.5 mm terminal blocks that are compatible with 16-30 AWG field wiring. Optional spring-clamp terminal blocks are available as accessories. Modules are available as Class 0 (IEEE 802.3af-2003) Power over Ethernet devices that allow power and data to be transferred over a single CAT5 cable, thus eliminating the need for an external power supply. Alternately, modules can be powered by a 9-30 VDC source. Input power on DC modules is via a removable spring-clamp terminal block, requiring no tools and simplifying field installation. A variety of optional power supplies are available.
>>For more information on this product, click here
Sealevel Systems
www.sealevel.com/
864.843.4343
