Second Generation HMI Mobile Panels Improve Performance and Flexibility
Jan. 1, 2016

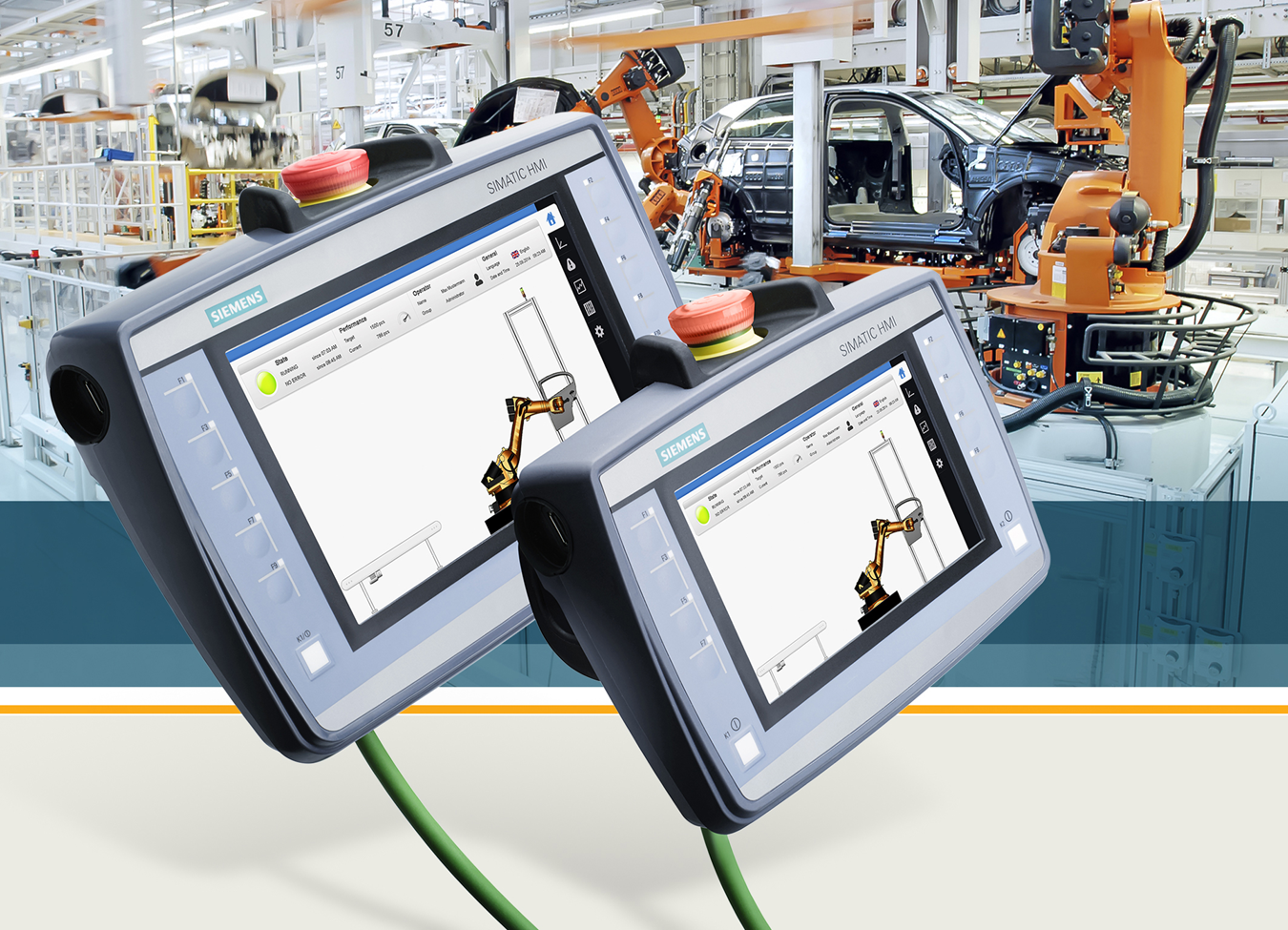

The Simatic HMI Mobile Panels from Siemens feature seven- and nine-inch, 16-million-color widescreen displays with 40 percent greater viewing areas than previous models.
Fully dimmable, the panels have 16:9 aspect ratios that clearly present highly complex and detailed images. Features include a unique illuminated emergency stop button, flexible options for safety applications and a compact connection box that can be mounted directly on the cabinet. The IP65 operator panels operate in a wide range of temperatures (from 0 to 45 °C), are dust-tight, resistant to chemical action and are protected against splash water damage. They can withstand falls up to 1.2 meters and includes the functionality and performance of the company's HMI Comfort Panels. The panels offer key and touch operation. They are integrated into the automation system via Profinet and configured using the Simatic WinCC engineering tool in the TIA Portal and Style Editor. The new mobile panels also include a maintenance-free energy storage system ensuring operation for five minutes with no power supply.
>>For more information on this product, click here
Siemens Corporation
www.siemens.com
800.743.6367
