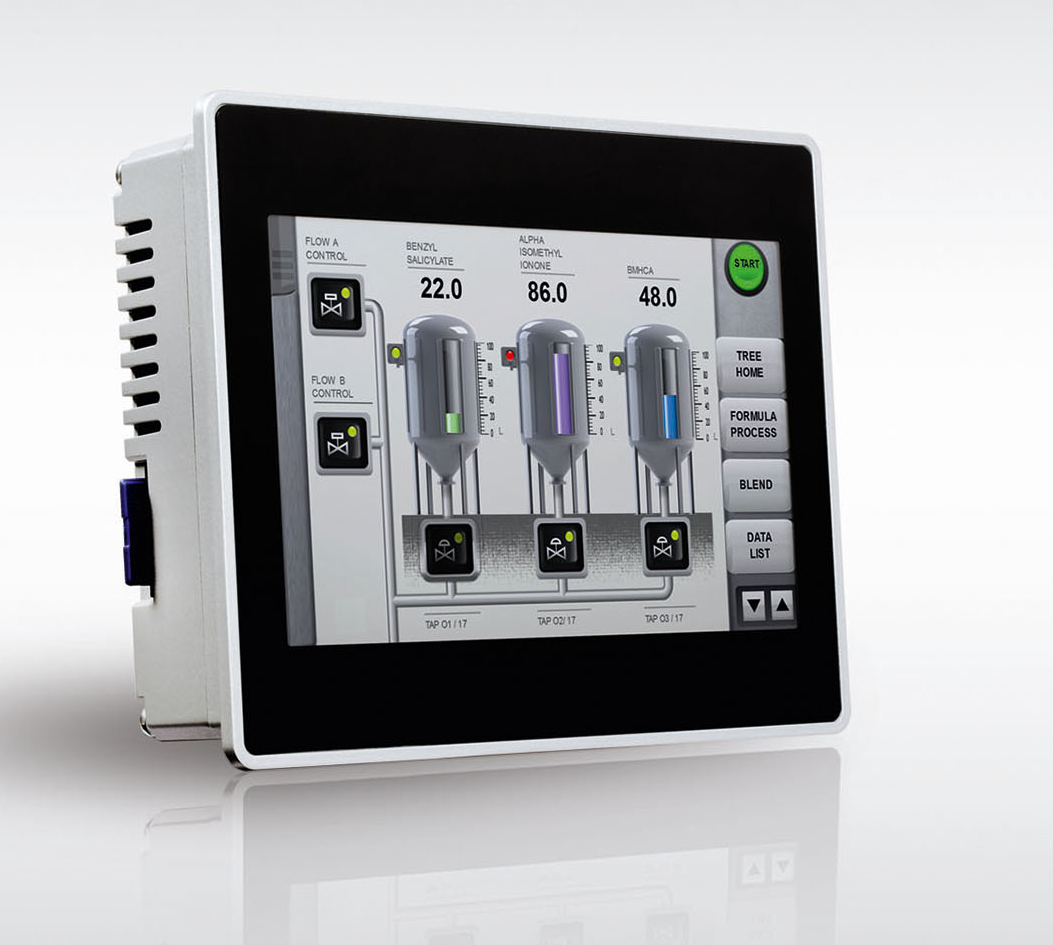

This makes the units suitable for use in small- to medium-size machines whose processes have to be controlled, displayed and operated locally. Each HMI is equipped with a PROFINET master and EtherNet/IP scanner, as well as a Modbus TCP and Modbus RTU master. The HMIs can also be run as field devices for both Modbus protocols. CODESYS 3 makes possible lean and simple programming of the PLC and visualization functions. The latest processor technology guarantees the smooth handling of computing intensive processes such as moving image visualizations. The high resolution TFT display with 64,000 colors enables attractive and high performance display of graphics and animations. The front panel is protected to IP66. Two RJ45 Ethernet ports, a serial interface for RS-232 or RS-485 as well as two USB ports are provided on the terminal side. An additional SD card slot makes it possible to expand the 128 MB internal data memory. Units are available in three sizes: two 16:9 displays with 7- or 13-inch (TX507 and TX513) diagonals and one 10-inch device in 4:3 format (TX510). The two smaller displays offer 800 x 400 pixels, while the large TX513 comes with 1280 x 800 pixels.
>>For more information on this product, click here
Turck, Inc.
www.turck.us/
800.544.7769
