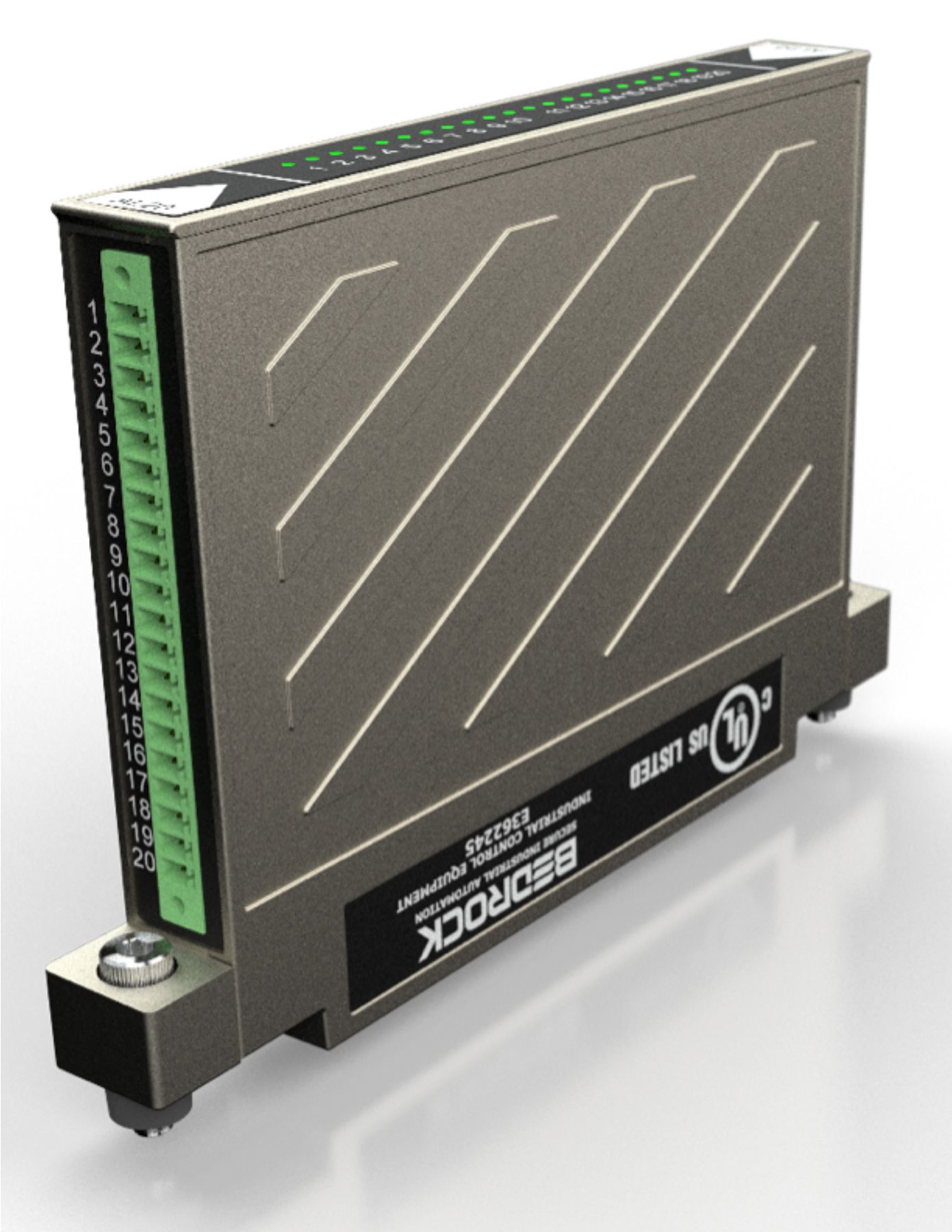

The SIO8.20 from Bedrock Automation makes possible secure, software-selectable electronic fusing, latching and fail-safe shutdown for each 24 VDC output at 1 A max current per channel.
The unit works with the companyâs OSA system and provides galvanically-isolated output switching in a compact, rugged, all-metal enclosure. It features Black Fabric Cybershield protection built in from the start. Other features include: programmable electronic fusing, with each output electronically fused to a programmable threshold up to 1 amp per channel; overcurrent; retry, which allows programming a channel to latch off and retry during overcurrent; scalable redundancy, with user-selectable single/dual/triple redundancy; high digital performance, with a 32-bit Secure ARM and an additional microcontroller on each channel for speed and diagnostics; and integrated support of IEEE 1588 time precision protocol that enables SOE synchronization with Âą0.5 ms accuracy on all channels. Control application developers can integrate all such features for discrete, hybrid and continuous control applications using the companyâs IEC 61131-3 compatible engineering environment, which can be downloaded free.
>>For more information on this product, click here
Bedrock Automation
www.bedrockautomation.com
781.821.0280
