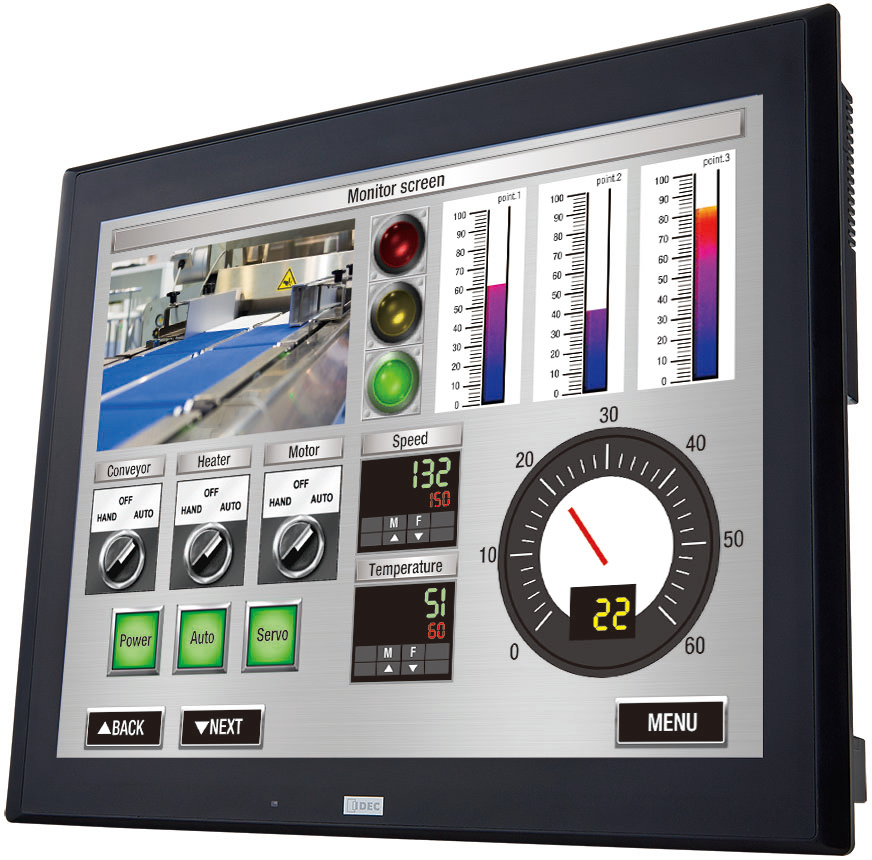

IDEC’s HG5G-V 15-inch touchscreen offers more display real estate so applications can show extensive process information with improved aesthetics and visibility.
The screen features a resolution of 1024x768 pixels and brightness of 650 cd/m2, allowing visibility even in direct sunlight, with a backlight life rating of 100,000 hours. The operating temperature range is -20 to +60 ºC, and the unit is rated IP66F, IP67F, Type 4X, 12, 13, Class I Division 2 hazardous location, and UL61010 approval ratings, helping to assure reliable operation in the toughest environments. Communications capabilities are bolstered by the addition of BACnet/IP, suitable for building automation and HVAC applications. Support is included for over 100 other serial and networking industrial protocols such as Modbus RTU Master/Slave and Modbus TCP/IP. Up to four protocols can be used simultaneously, allowing the unit to exchange data with many sources and systems. FTP functionality allows users to configure the HMI as an FTP client or server for transferring programs, and for copying or moving files between local memory, an external memory device or a cloud-based file, database or data storage platform. Web server functionality for HMI remote monitoring and control is accessed using any device capable of hosting a web browser including a smartphone, tablet or laptop. The HMI also supports industrial internet of things (IIoT) operation by serving up web pages developed using a browser-based web page editor, and it can also generate emails.
>>For more information on this product, click here
IDEC Corporation
www.IDEC.com/usa
800.262.4332
